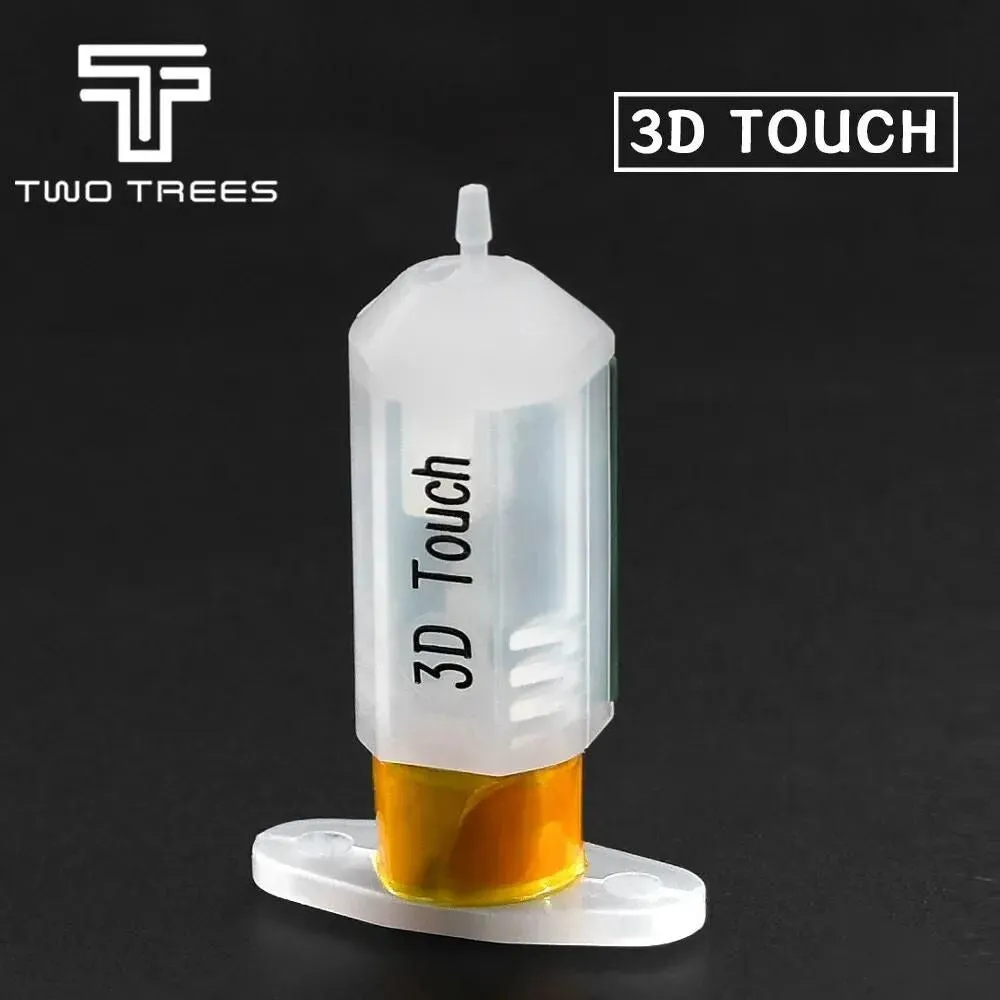

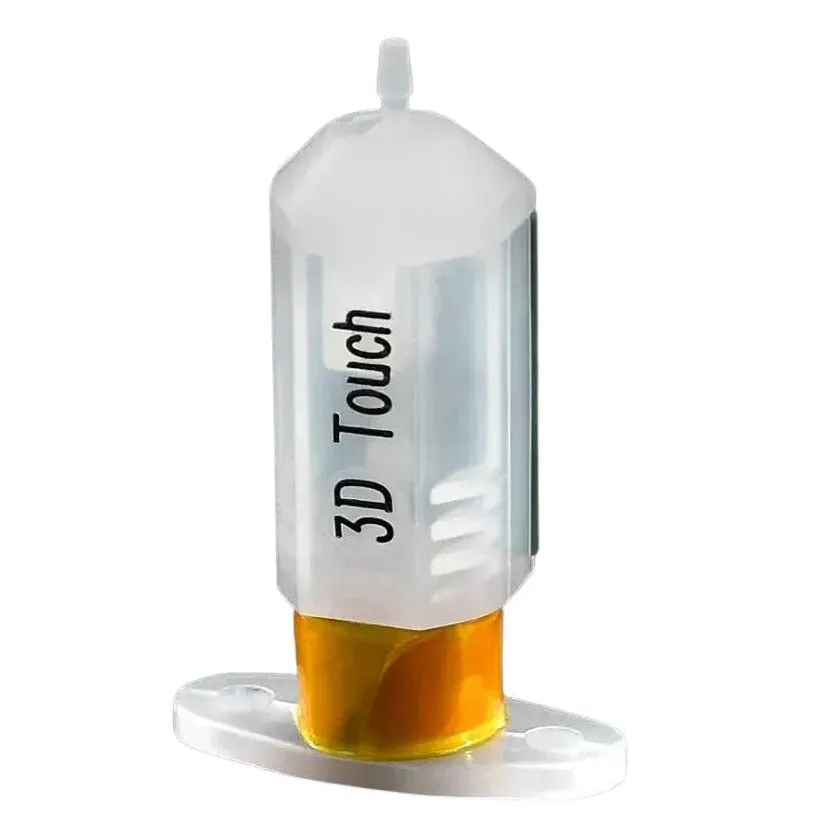

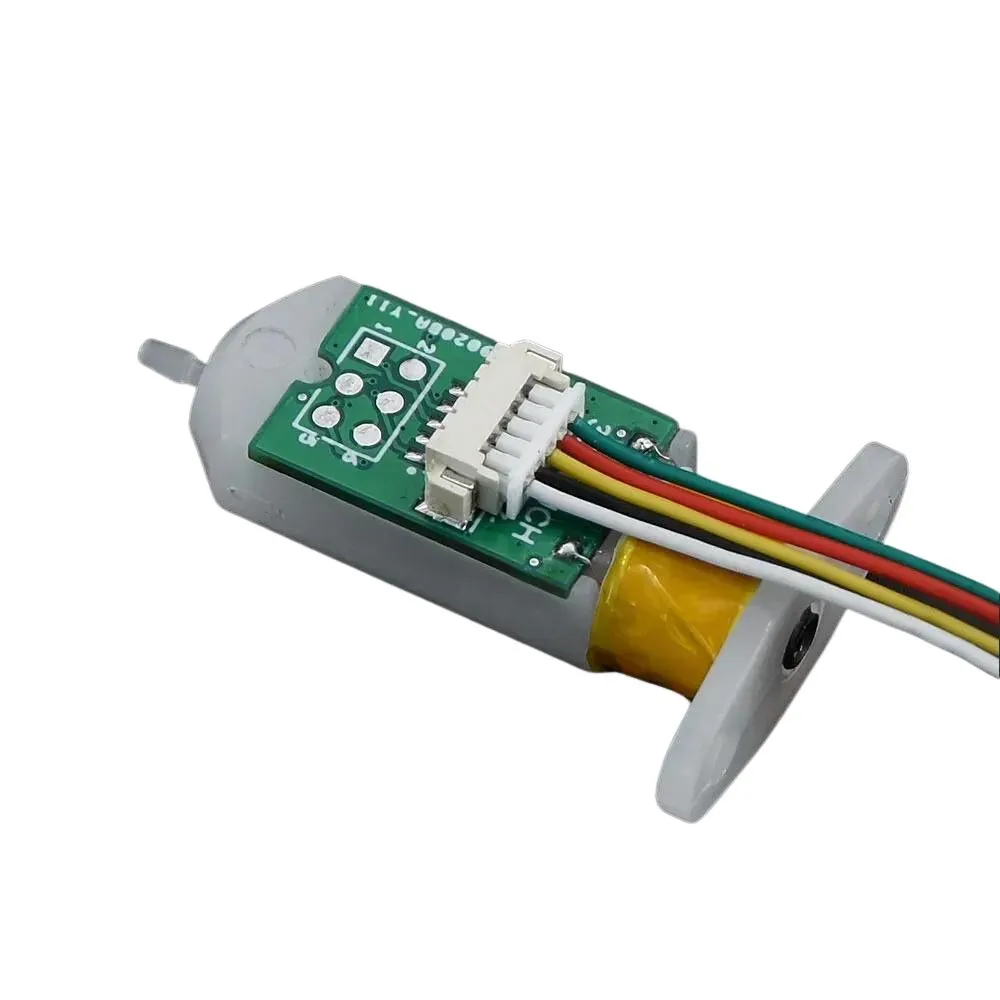

The Two Trees Auto Touch Module is a BL-Touch compatible upgrade that can be installed on many 3D printers to improve bed leveling accuracy. This can lead to improved print quality and reduced failure rates.

The Auto Touch Module uses a hall effect sensor to measure the distance between the print head and the heated bed. This information is used to automatically adjust the Z-axis height during printing, ensuring that the first layer is always laid down correctly.

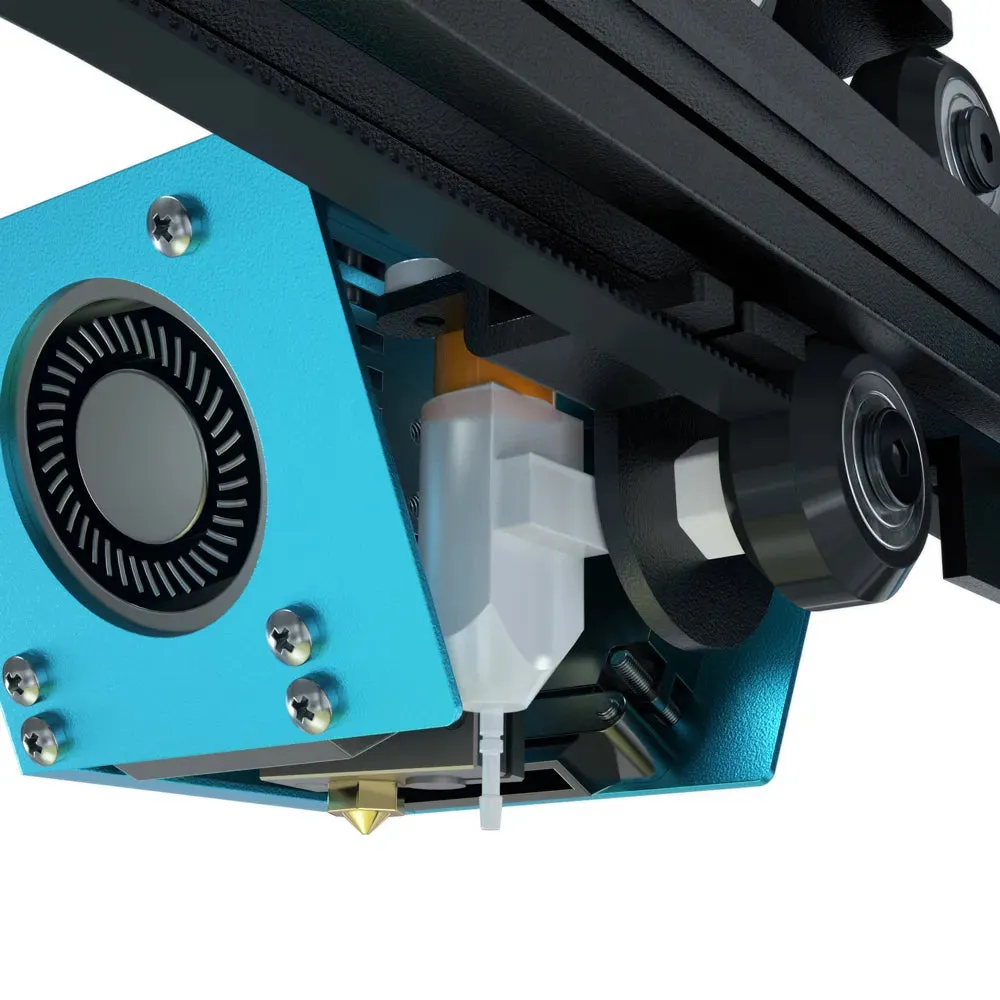

The Auto Touch Module is easy to install and use. Simply mount the sensor to your printer, connect the wires, and enable the auto leveling feature in your printer's firmware.

Features:

• Automatic bed leveling
• Hall effect sensor
• Easy to install and use
• Improves print quality
• Reduces failure rates

Specifications:

• Voltage: 5V
• Current: 15mA
• Max Current(Peak): 300mA
• Shell Material: PC
• Cable Length: short 200mm long 1000mm

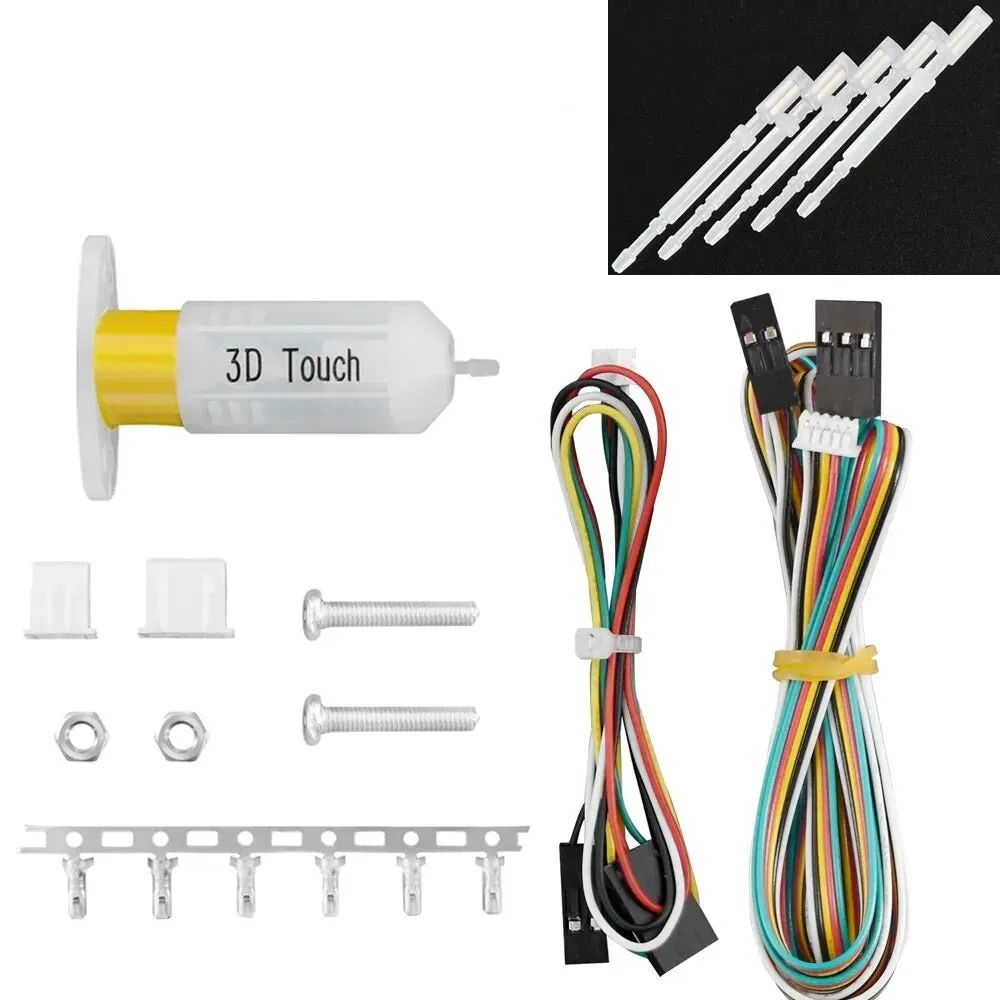

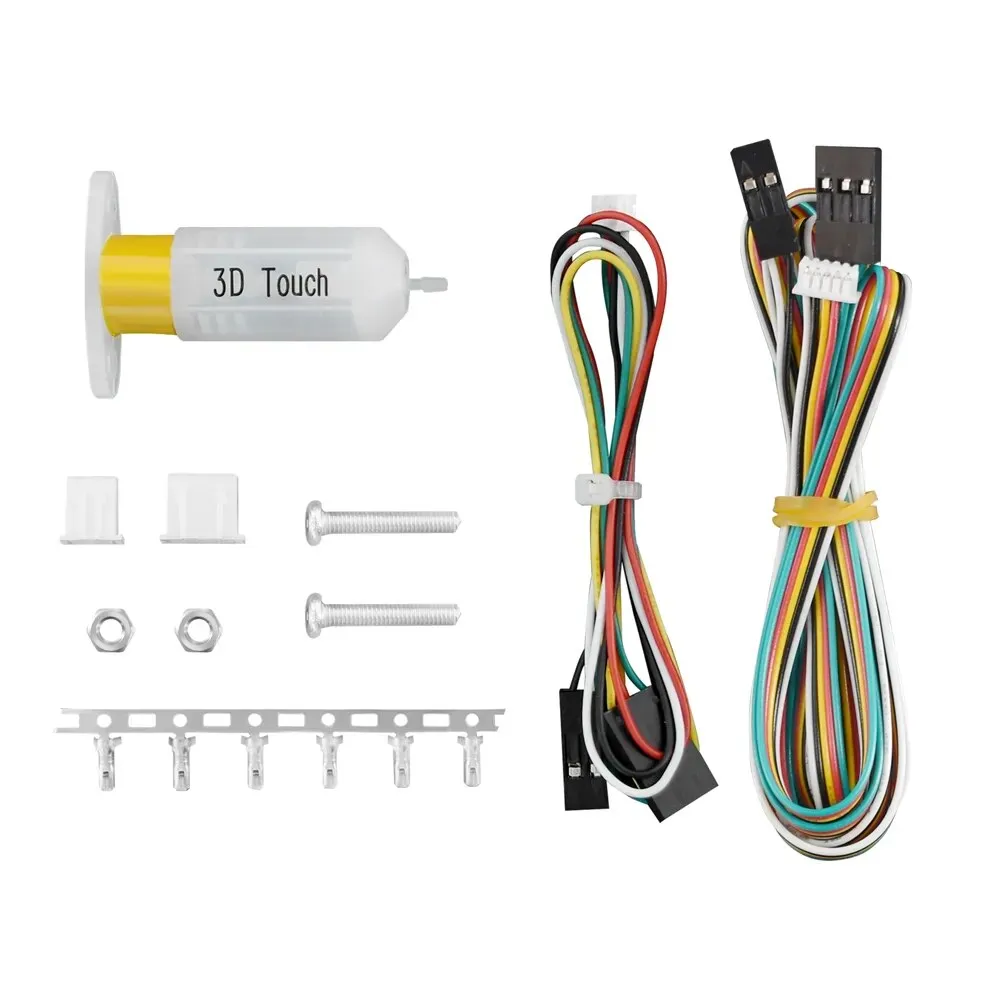

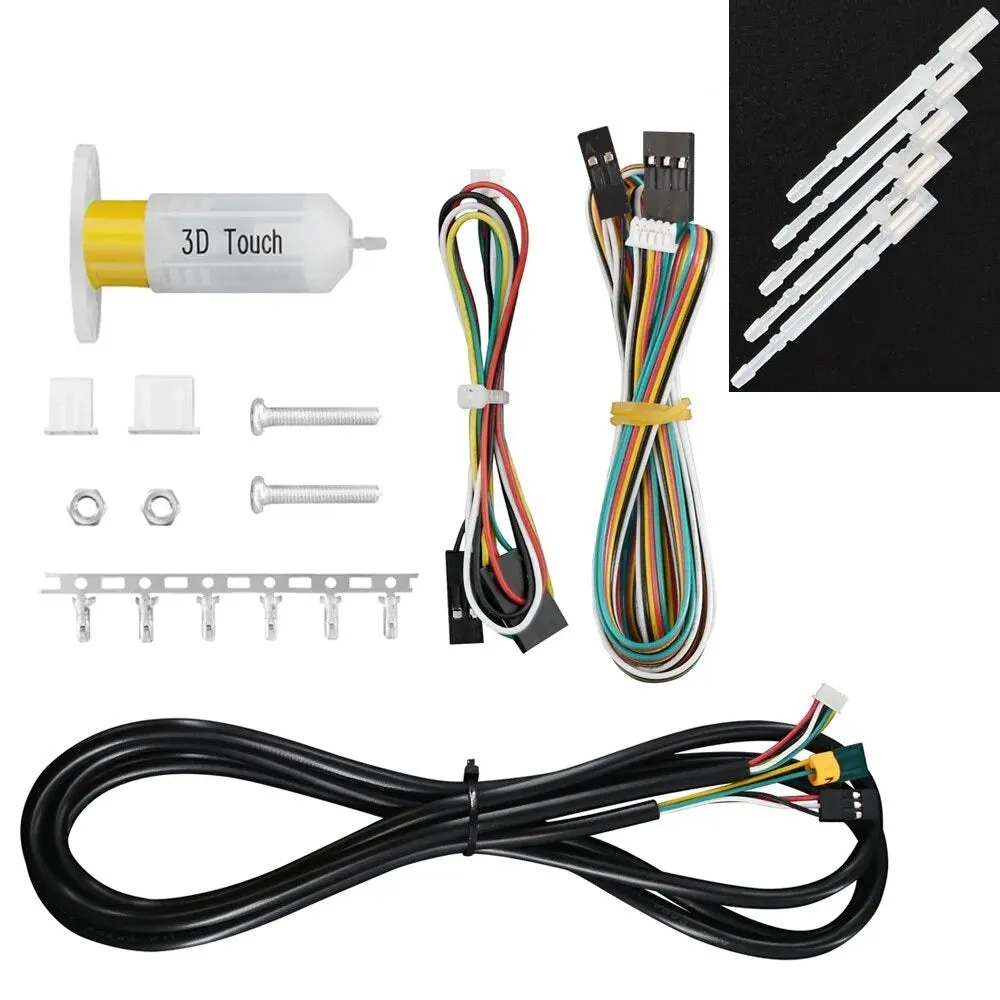

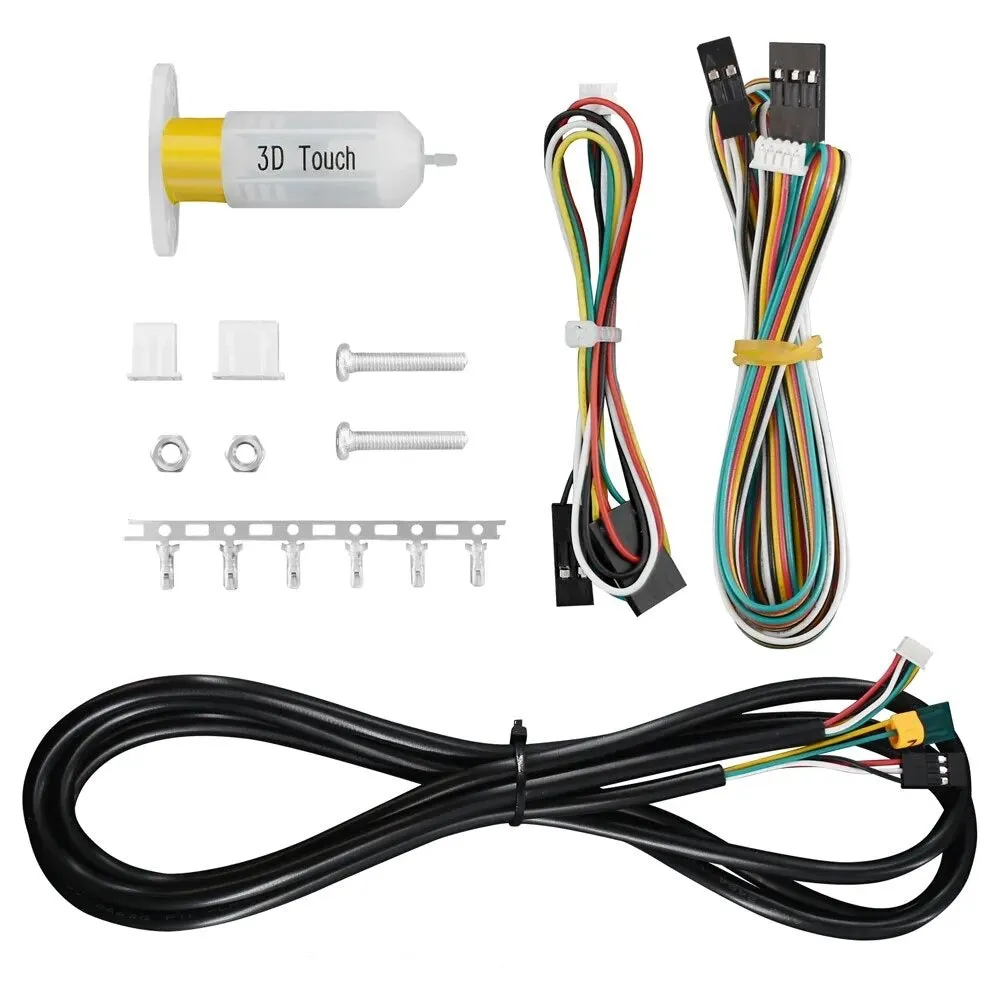

• Standard Package Included:
  1* Leveling Sensor
  1* 200mm Cable
  1* 1000mm Cable
  2* M3 nuts and screws
  2* XH2.54mm Terminals
  1* Coiling Terminal

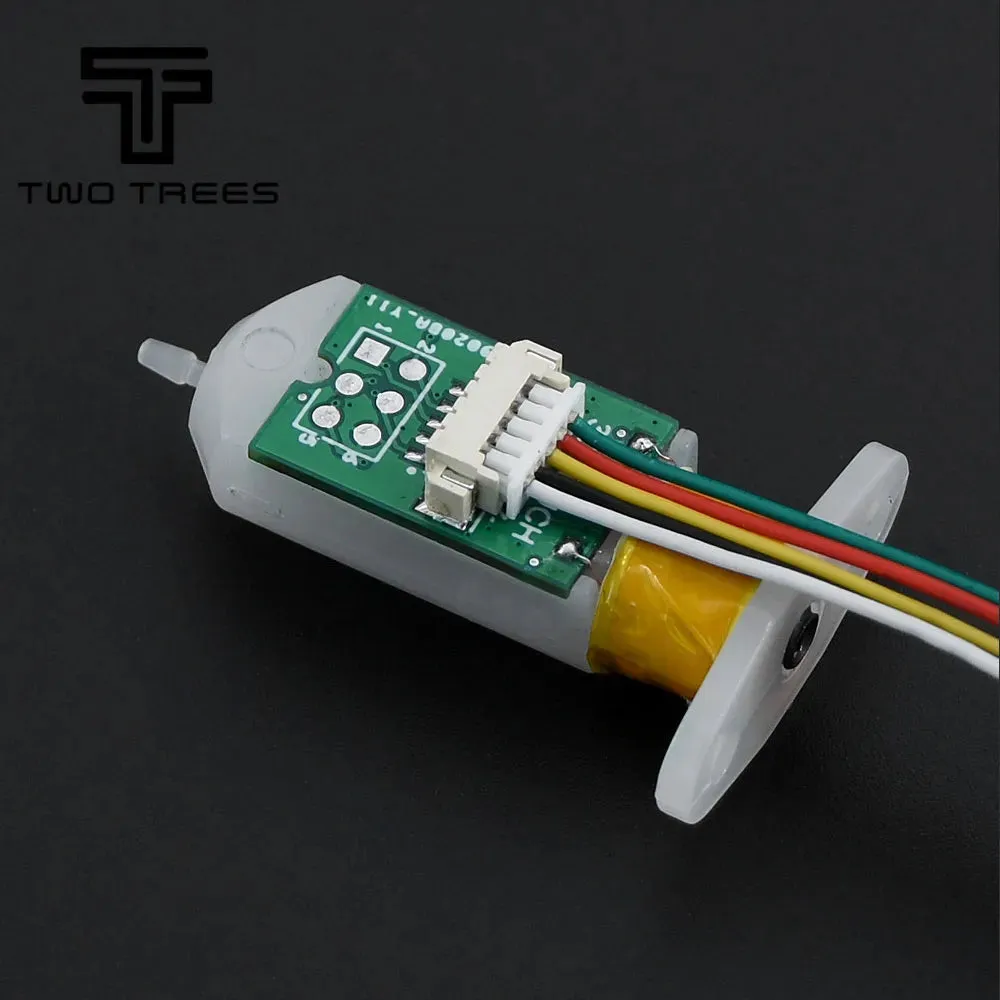

Wiring:

• 3 Pin:
  Green: GND
  Red: 5V
  Orange: Signal Cable
• 2 Pin:
  Black: GND
  White: Z-min
