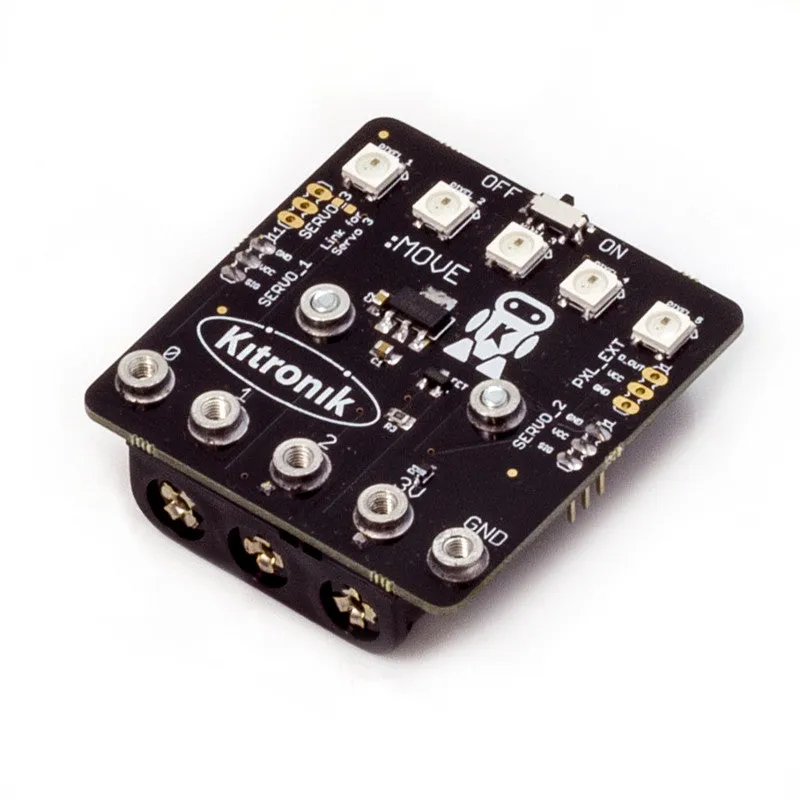

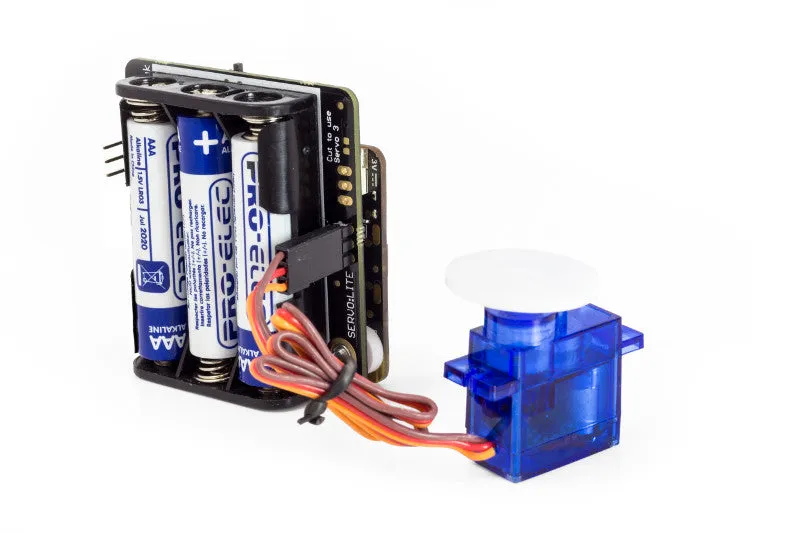

The Servo:Lite board for the BBC micro:bit is a simple board that allows you to easily connect and control low power servo motors (servo's must be capable of operating at 3.3V) using the BBC micro:bit. It is connected to the micro:bit using five bolts. Connect two servos in standard configuration and it can drive up to 3 servos if the addressable 'ZIP' LEDs aren’t needed.

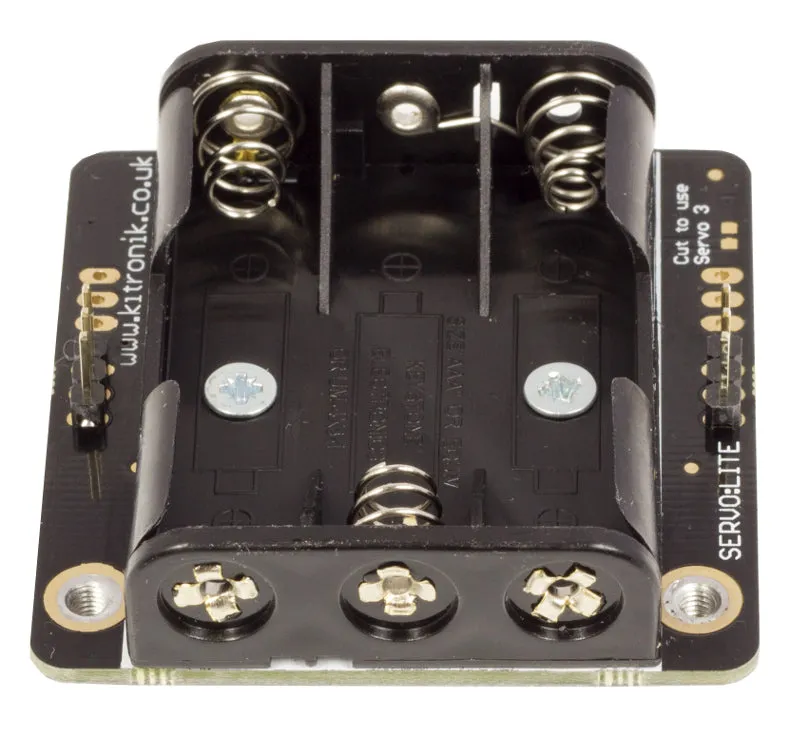

It is powered by 3 AAA batteries and also supplies power to the BBC micro:bit, the board features an On / off switch so when it's not in use the batteries won't drain.

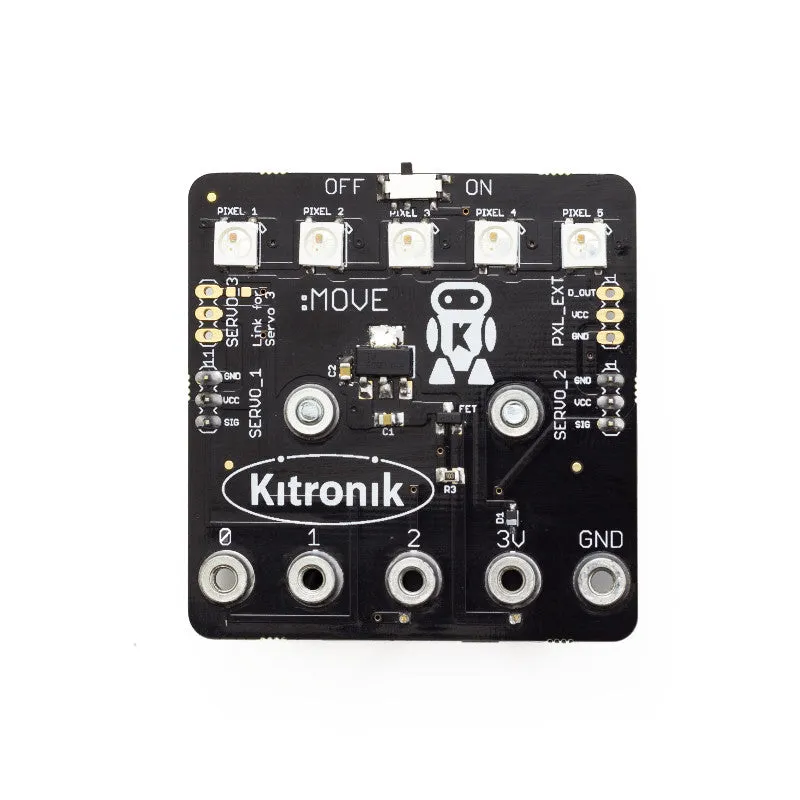

The board also features 5 x RGB individually addressable ZIP LEDs (NeoPixel compatible) and additional external ZIP LEDs can be connected to the board as required.
We've produced a range of tutorials and guides that can be found in the resources section below. We have guides detailing; how to control a third servo and how to write code for the on-board ZIP LEDs.
Video:
Features:
- Connect two servos in standard con?guration and can drive up to 3 servos if the addressable 'ZIP' LEDs aren’t needed.
- Powered by 3 AAA batteries that also supply power to the BBC (not supplied).
- On / off switch.
- 5 x RGB addressable ZIP LEDs (NeoPixel compatible). Additional external ZIP LEDs can be connected to the board.
Contents:
- 1 x Servo:Lite board with battery holder pre-fitted.
- 5 x M3x8 Counter sunk Pozi Steel screws.
- 1 x Perspex spacer.
Dimensions:
- Length: 55mm.
- Width: 52mm.
- Height: 17mm.
Requires:
- 3 x .
- 1 x BBC .
- .
- Screwdriver.
Resources:
- .
- .
- .
- .
- .
- .
- .
Note:
- Once the Servo:Lite board is attached to the microbit there is a maximum clearance of 6mm for the plastic sheath of the USB cable. Our and the cable which is supplied in the official Go pack both fit.
