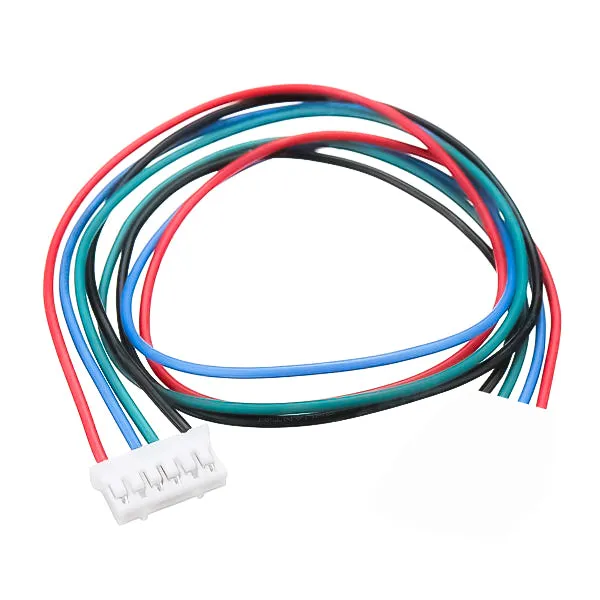

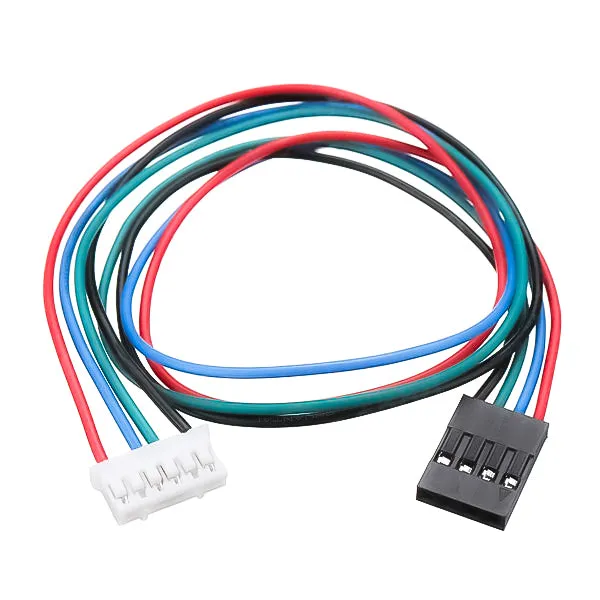

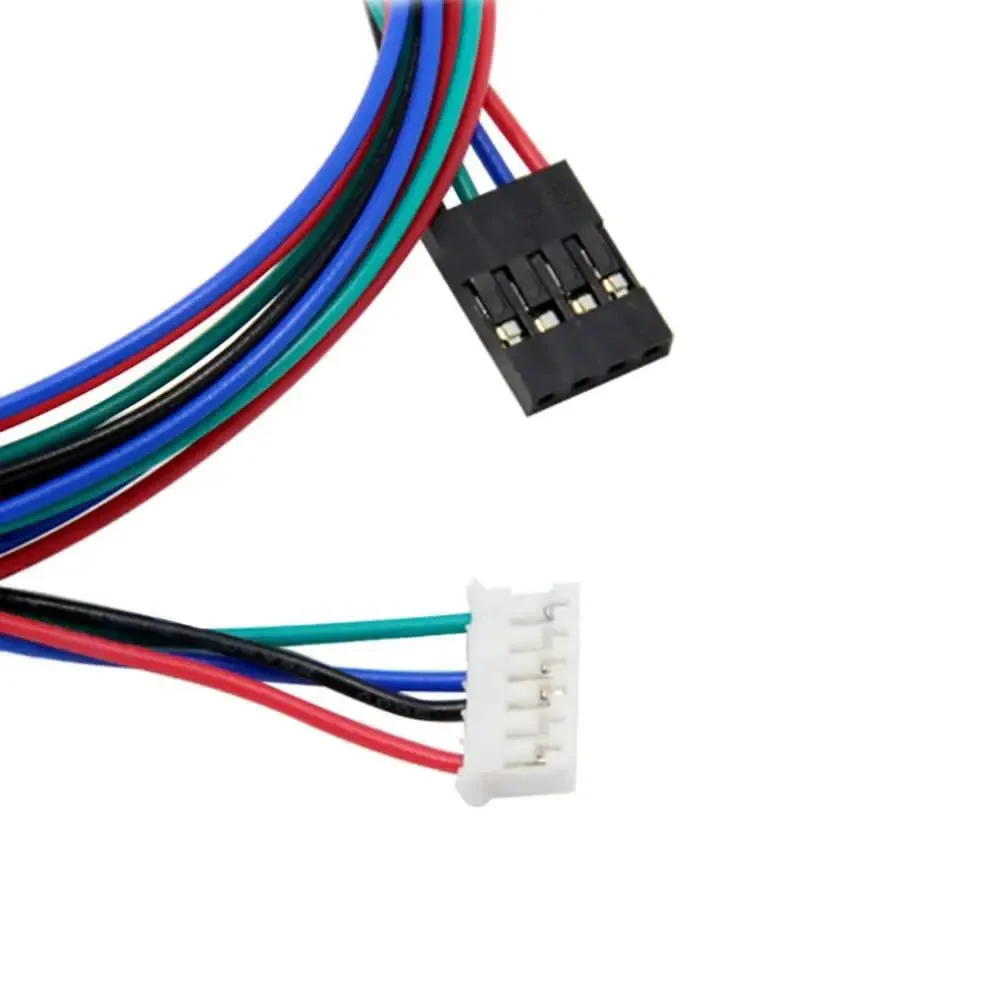

JST-XH Dupont Cable Wire for Stepper Motors NEMA 17

A JST cable for a NEMA17 stepper motor typically refers to the connector and wiring used to connect the stepper motor to a driver or controller board.

1. Connector Type: The JST connector used for NEMA17 stepper motors is often a 4-pin connector. Common types include JST-XH or JST-PH connectors.

2. Pin Configuration: The typical pin configuration for a 4-pin JST connector used with NEMA17 stepper motors is:

   • Pin 1: Coil A
   • Pin 2: Coil A-
   • Pin 3: Coil B
   • Pin 4: Coil B-

3. Cable Specifications:

   • Wire Gauge: Usually around 22 AWG to 26 AWG, depending on the current rating and application requirements.
   • Length: Varies depending on the application, often specified in meters or feet.

4. Compatibility: Ensure that the JST connector type matches both the stepper motor and the driver/controller board to avoid compatibility issues.

5. Applications: Used in various applications where NEMA17 stepper motors are employed, such as 3D printers, CNC machines, robotic systems, and automated equipment.

"Discover an extensive range of to suit your specific needs and applications."
