Technical Specifications

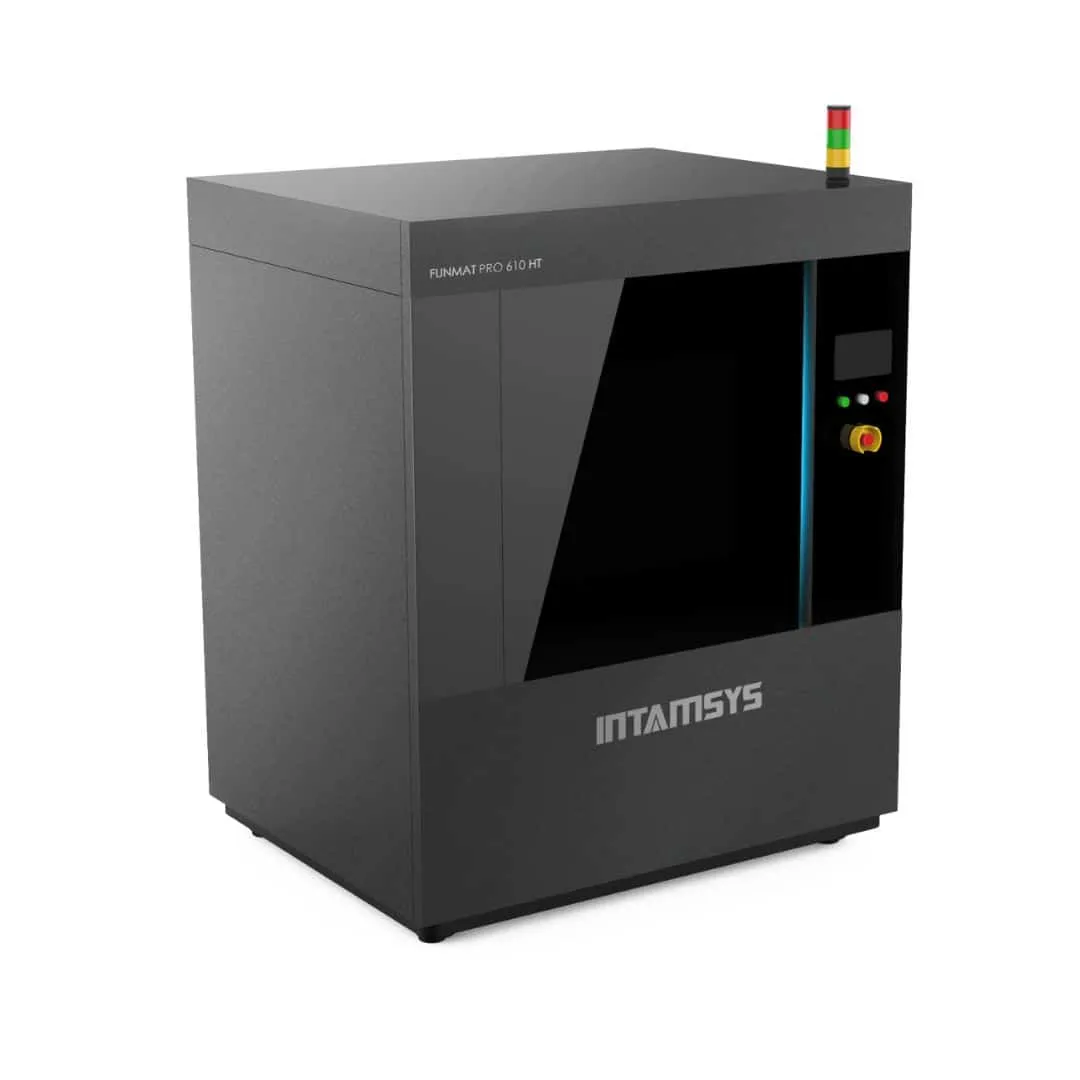

Model: FUNMAT PRO 610 HT

Printing Technology: Fused Filament Fabrication (FFF)

Machine size: 1,710 x 1,390 x 2,080mm (67.3 x 54.7 x 80.1in)

Build Volume: 610 x 508 x 508 (24 x 20 x 20in)

Build Platform: Vacuum Absorption Platform

Leveling: Automatic Leveling

Layer Thickness: 0.15-0.3mm

Extruder Temperature: Max. 500℃/932o F

Chamber Temperature: Max. 300℃/572o F

Input File Type: STL, OBJ

Filament Diameter: 1.75mm

Position Resolution: XY: 12.5μm Z: 1.25μm

Safety Certification : FCC/CE

Connectivity: WiFi/Ethernet/USB

Supported Materials

The FUNMAT PRO 610 HT supports a wide range of materials, including PEEK/PEEK-CF/PEEK-GF/PEKK/ULTEMTM (PEI)/PPSU/PC-HT/PC/PC Alloys/ PA-HT/PA/PA-CF/ASA/ABS/HIPS/Carbon Fiber-Filled/GlassFiber-Filled/ ESD-Safe and others.

Why Choose the FUNMAT PRO 610 HT?

Choosing the FUNMAT PRO 610 HT means investing in a 3D printer that offers industrial-grade performance and reliability. Here's why it stands out:

• High Build Volume: Print large-size parts with ease.
• Advanced Thermal Control: Ensures optimal conditions for high-performance materials.
• Versatile Dual Nozzles: Ideal for a wide range of industrial applications.
• User-Friendly Features: Automatic leveling and high-temperature capabilities for efficient and reliable operation.
