Shipping Now!

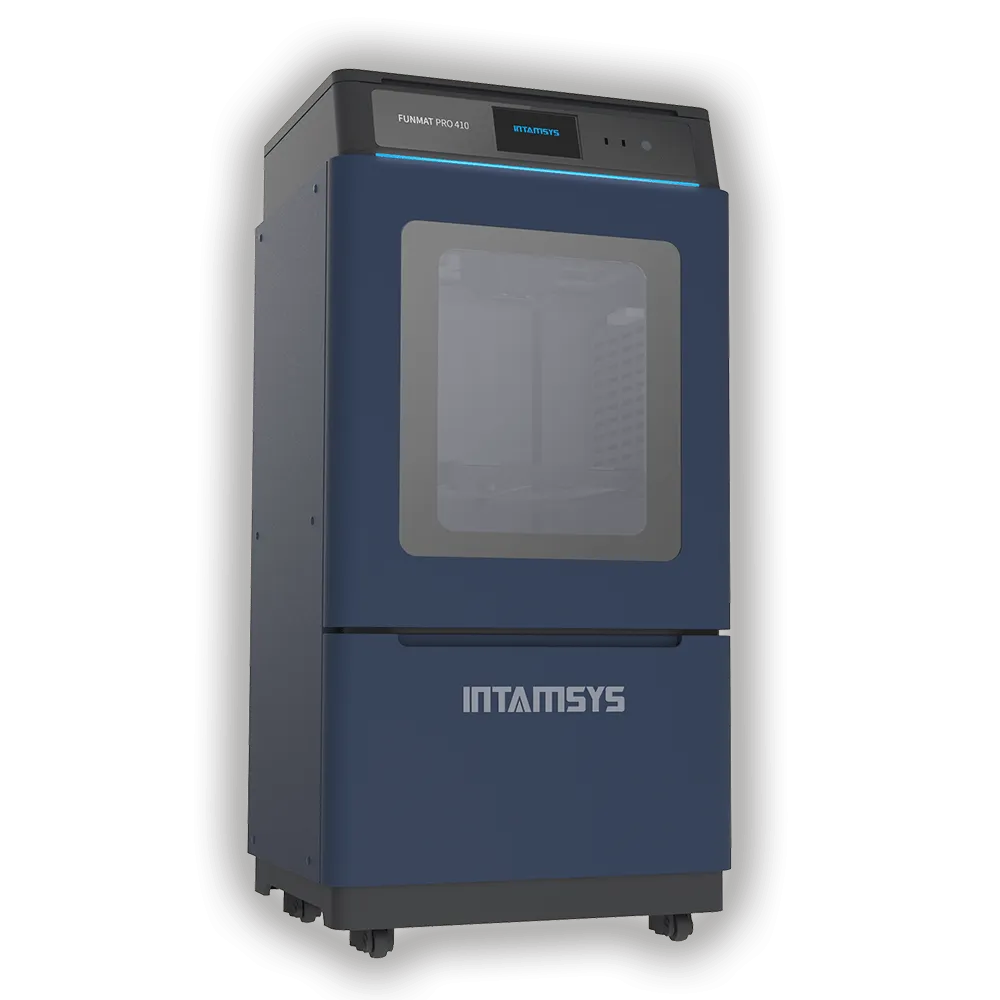

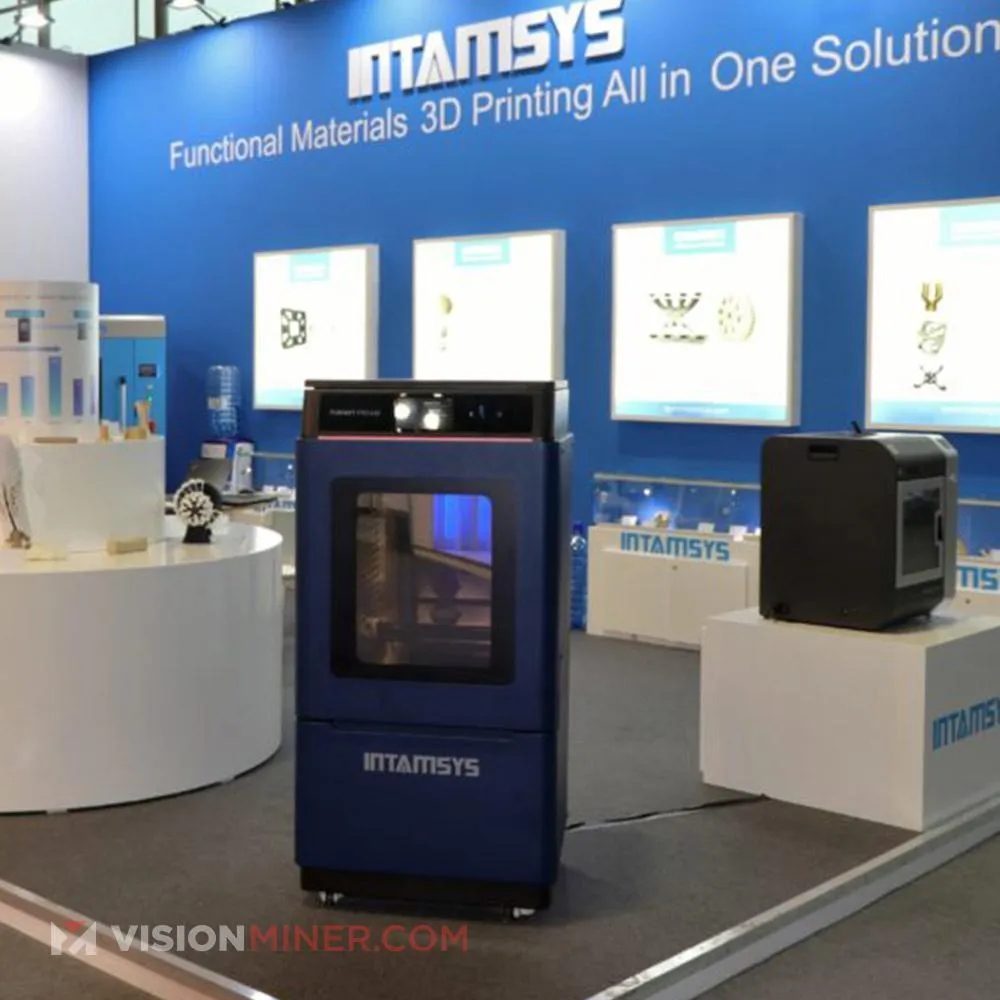

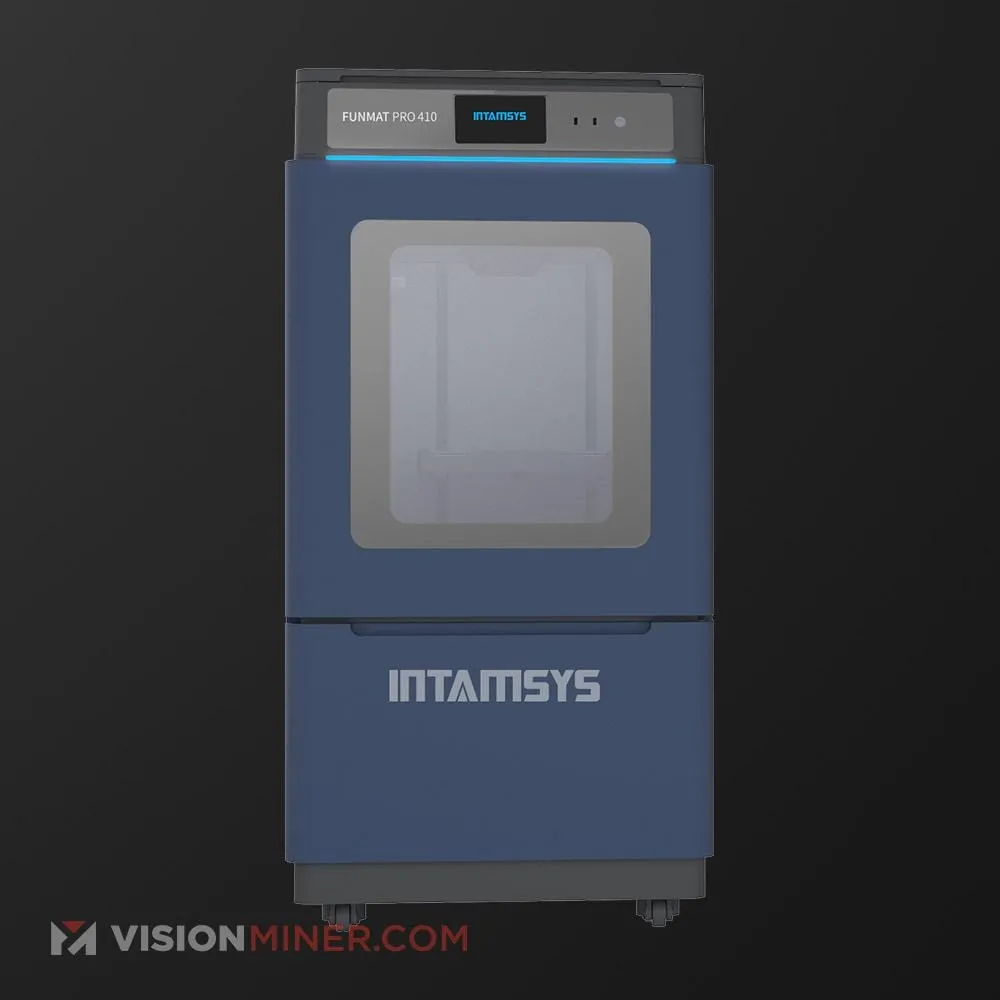

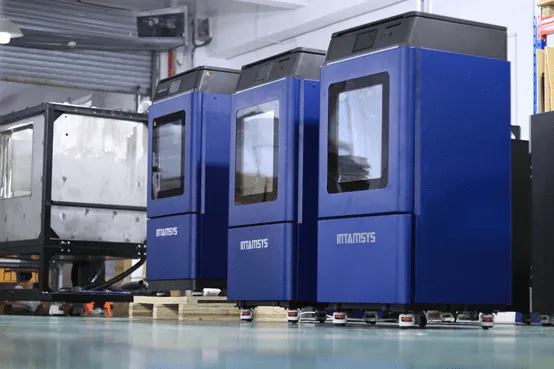

The FUNMAT PRO 410 is an industrial additive manufacturing 3D printer designed for PEEK, PEI & PEI Blends, PPSU and other High-Performance Polymers.

For the very first time, the INTAMSYS FUNMAT PRO 410 features a dual extruder which operate in a large 305 x 305 x 406 mm build chamber (12 x 12 x 16 inch).

The FUNMAT PRO 410 is a Multiple Functional Materials 3D printer (PEEK, PEKK, PPSU, PEI & PEI Blends, ABS, PC and much more). A linear guide and a high performance oriental motor ensure a high speed and a high precision.

For an optimum comfort of use, nozzles can be cleaned automatically, a filament absence warning system is included, status are indicated by a LED system while an inside camera provides you with a live observation how the printing process.

We are happy to answer any questions regarding the Funmat Pro 410 HT, just give us a call or email!

FOR ADVANCED USERS ONLY. REQUIRES ADVANCED TECHNICAL SKILLS TO OPERATE AND MAINTAIN.

[/custom_html]

Dual Extrusion for High-Temp Materials

Name: Funmat Pro 410
SKU: 1674986

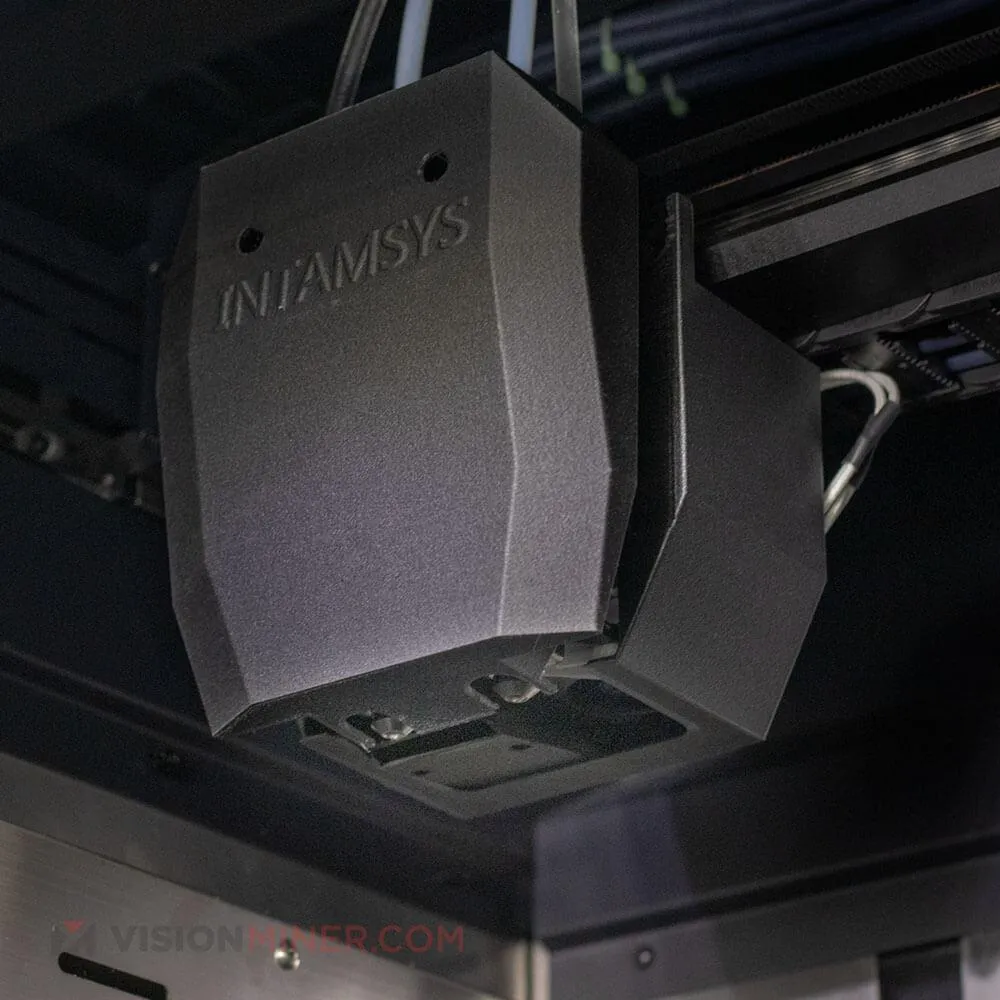

High Temperature Extruders

High temp, all-metal hotends heat up to a blistering 500°C

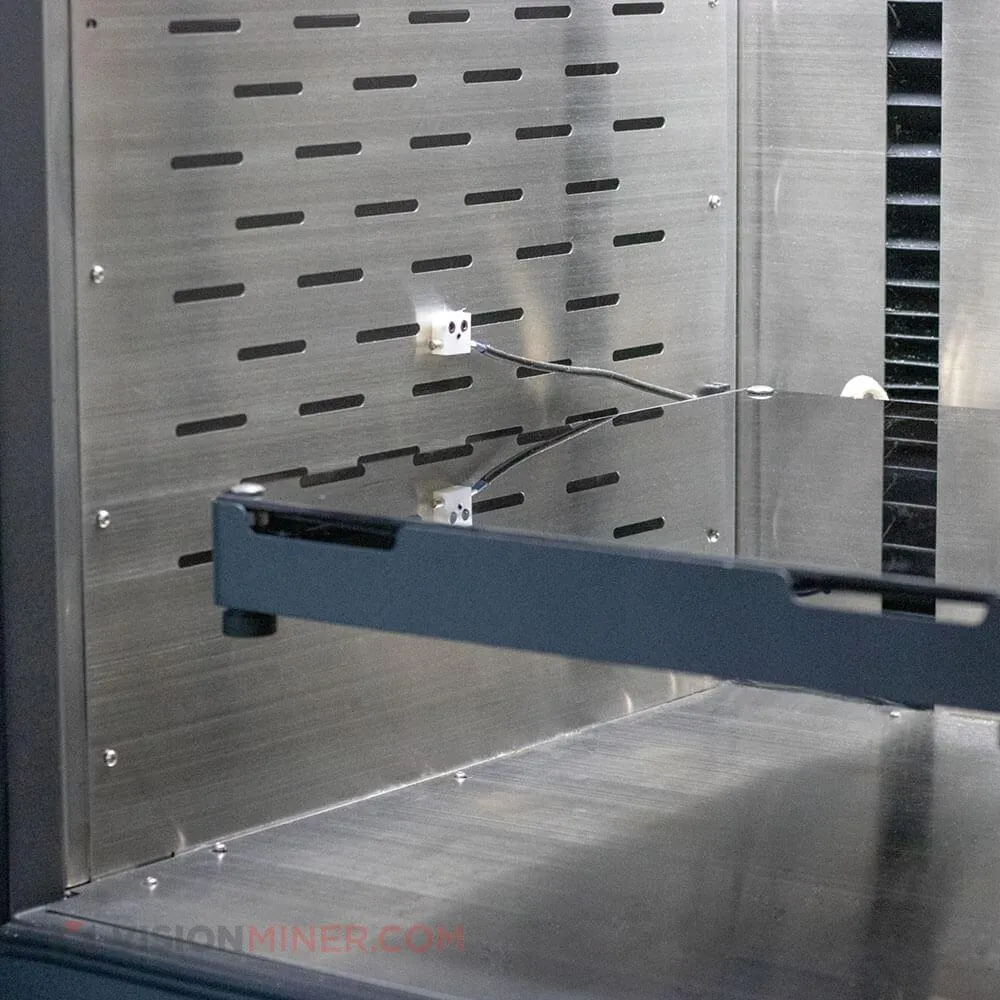

Insulated & Heated Chamber

Fully-enclosed environment helps printing without warping or curling issues

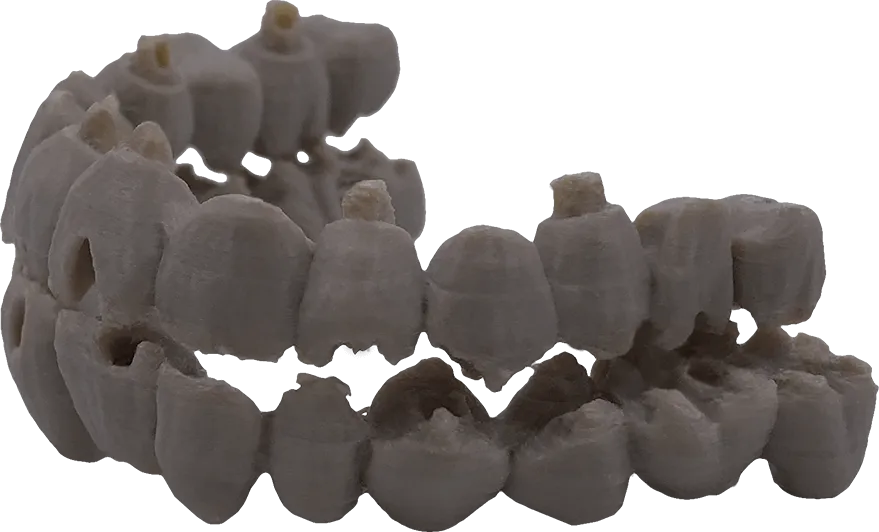

Aerospace, Medical, and Automotive Grade Materials

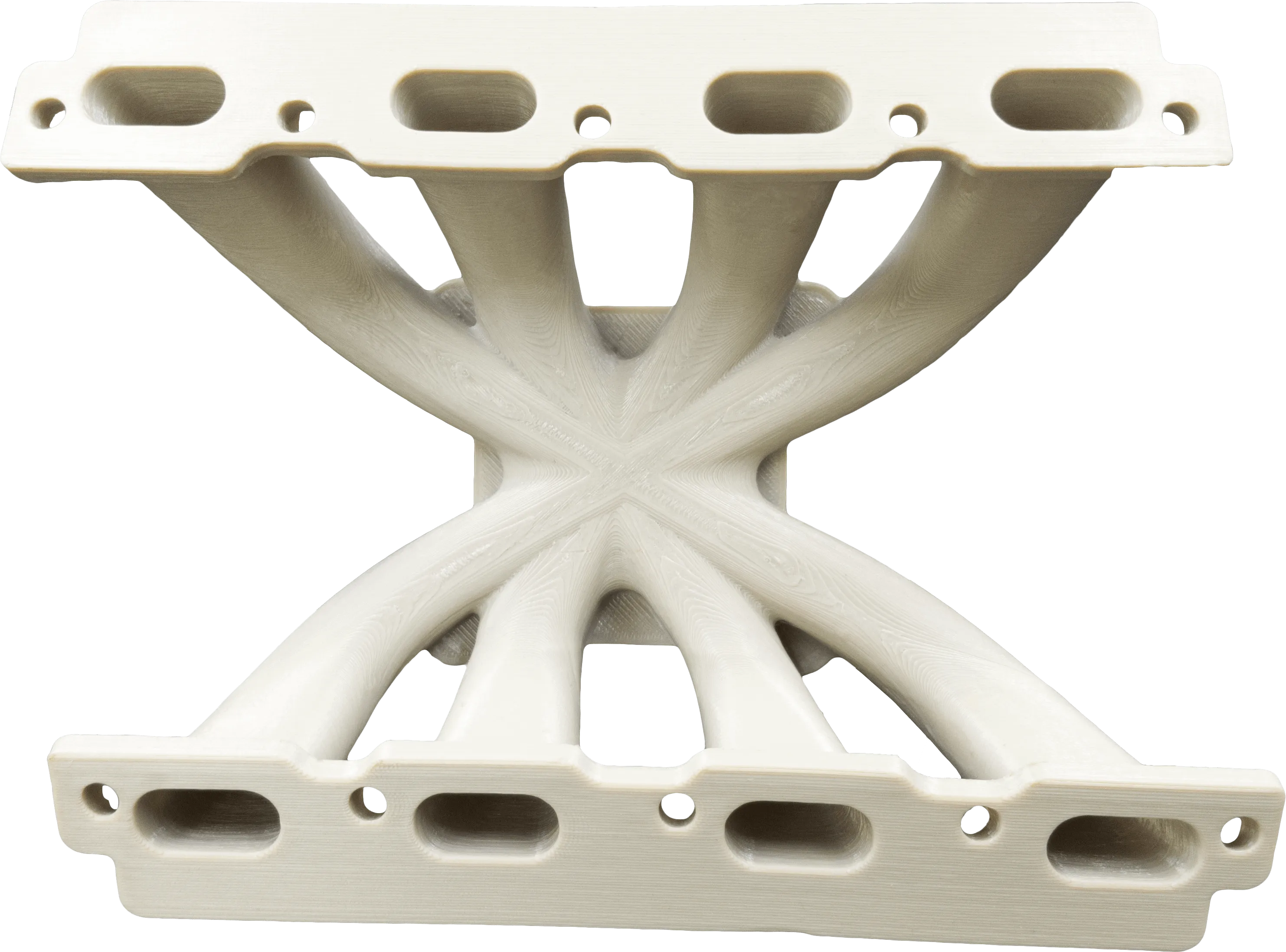

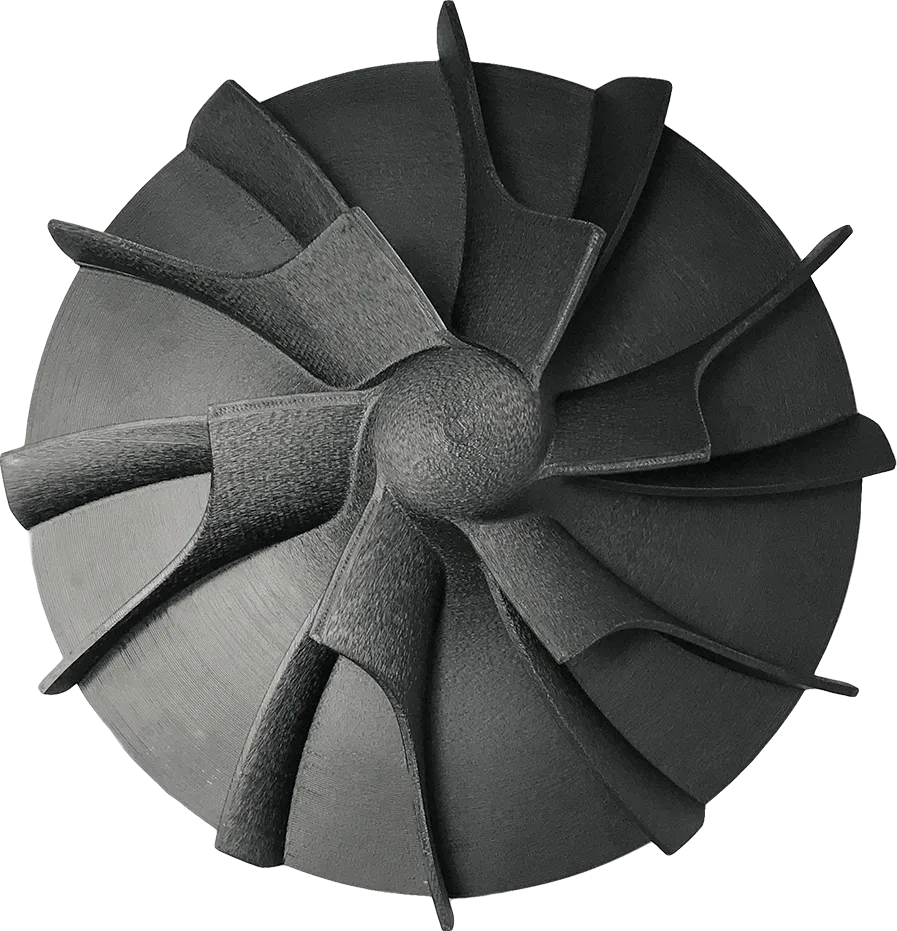

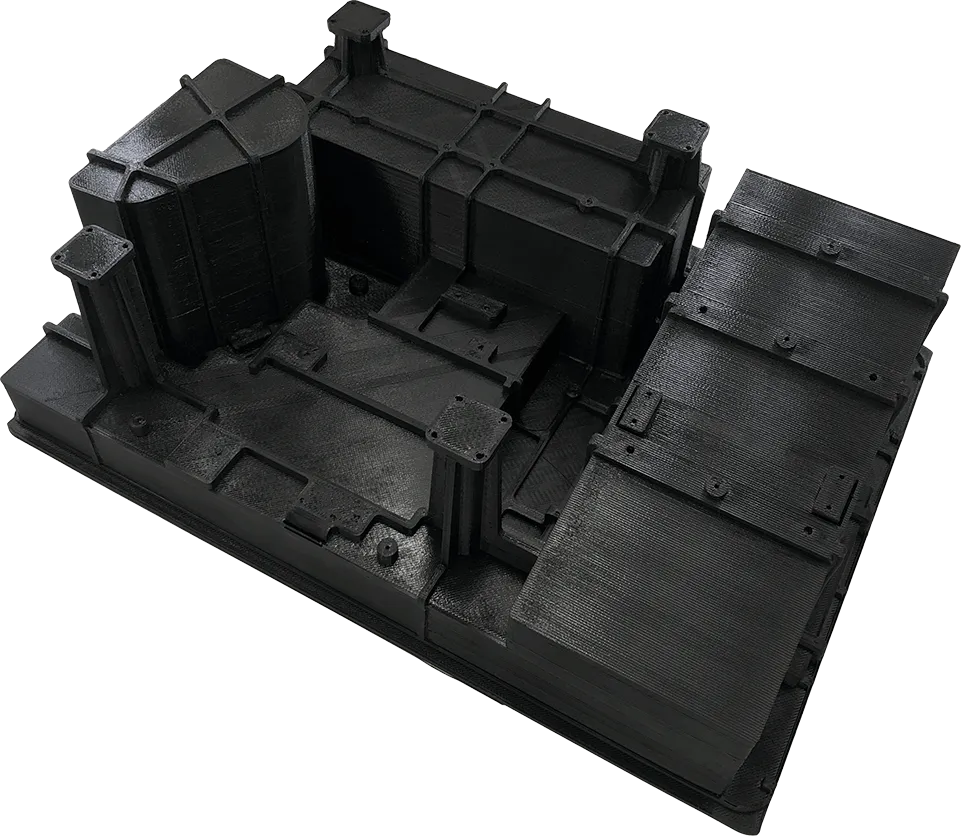

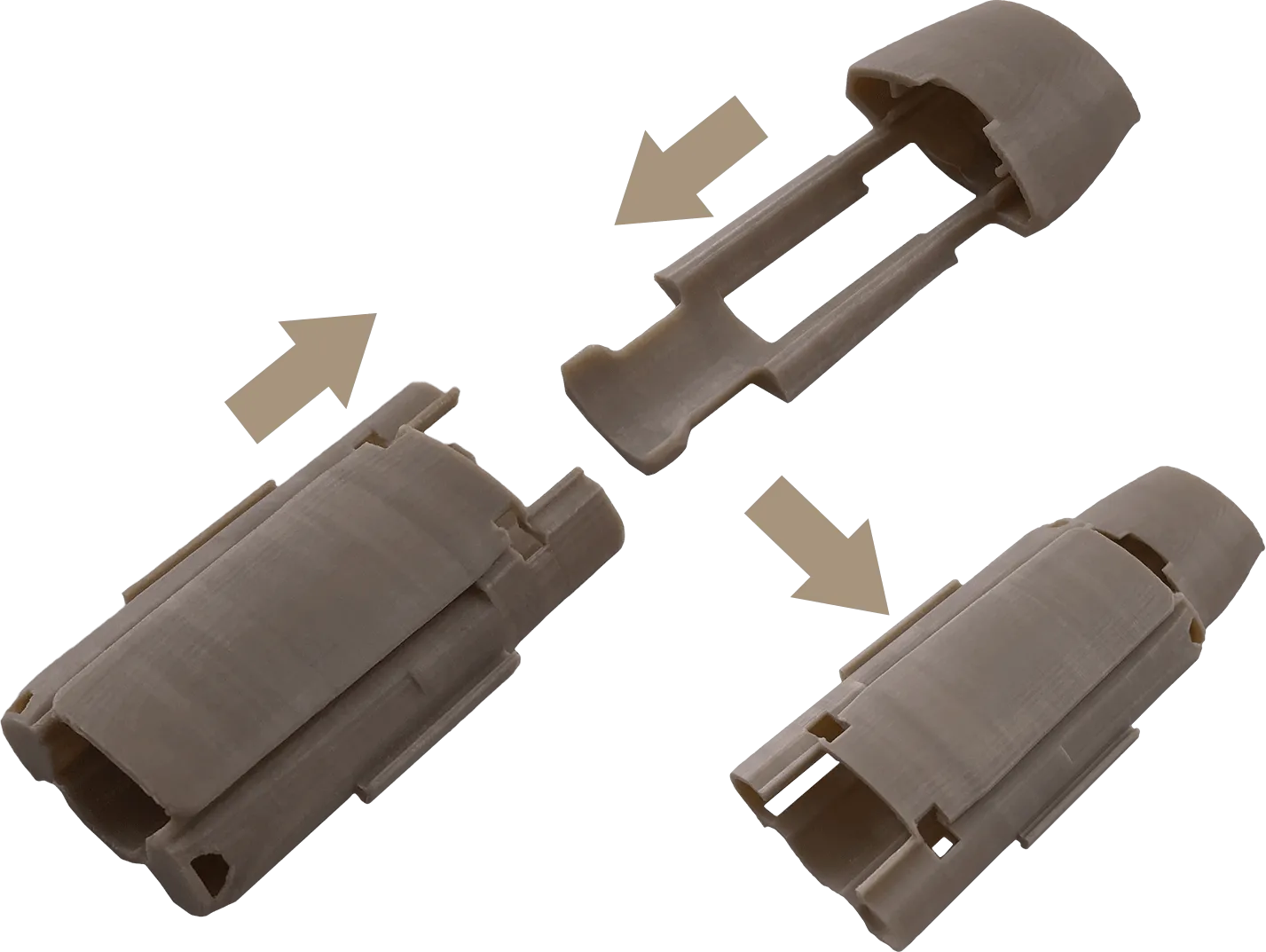

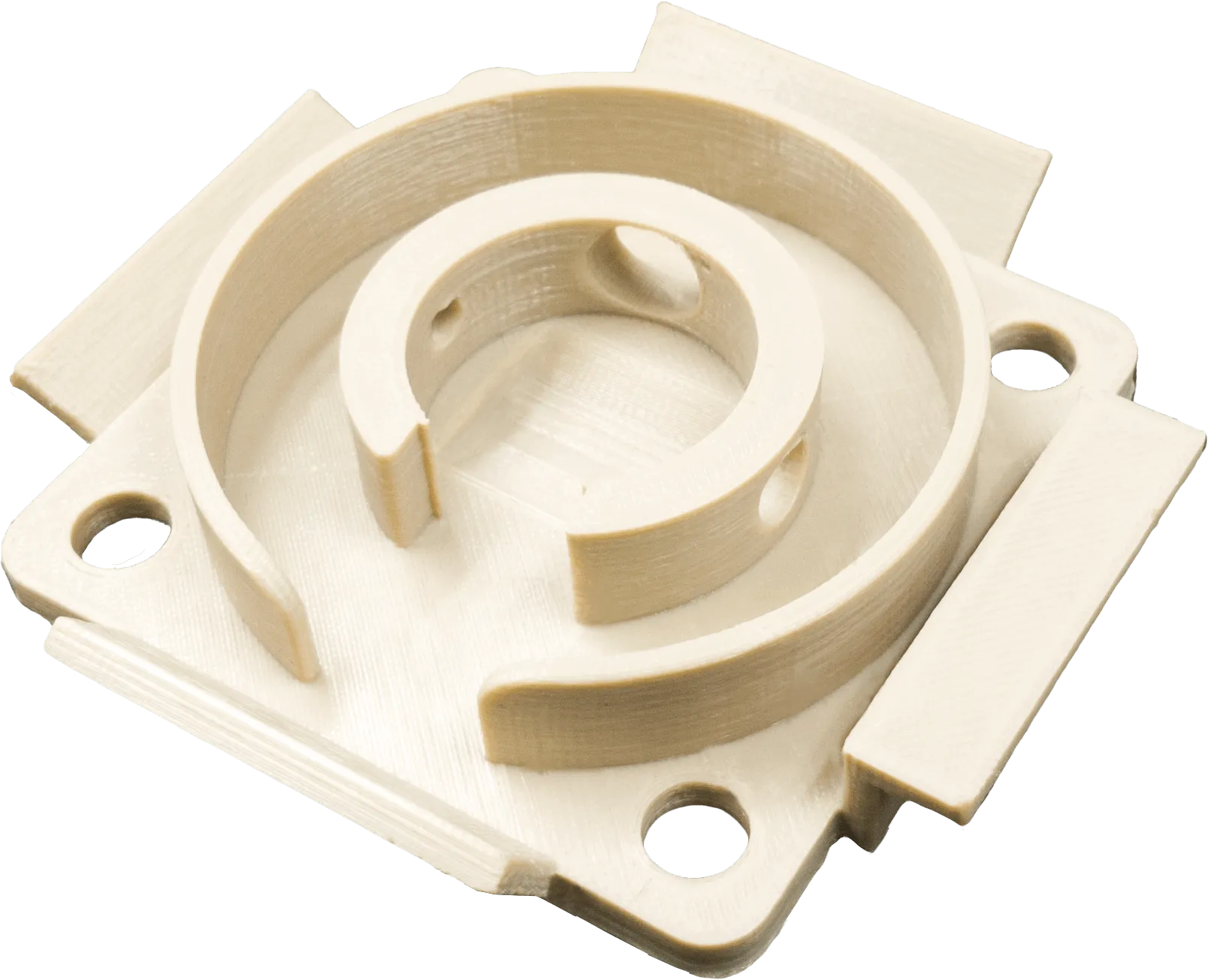

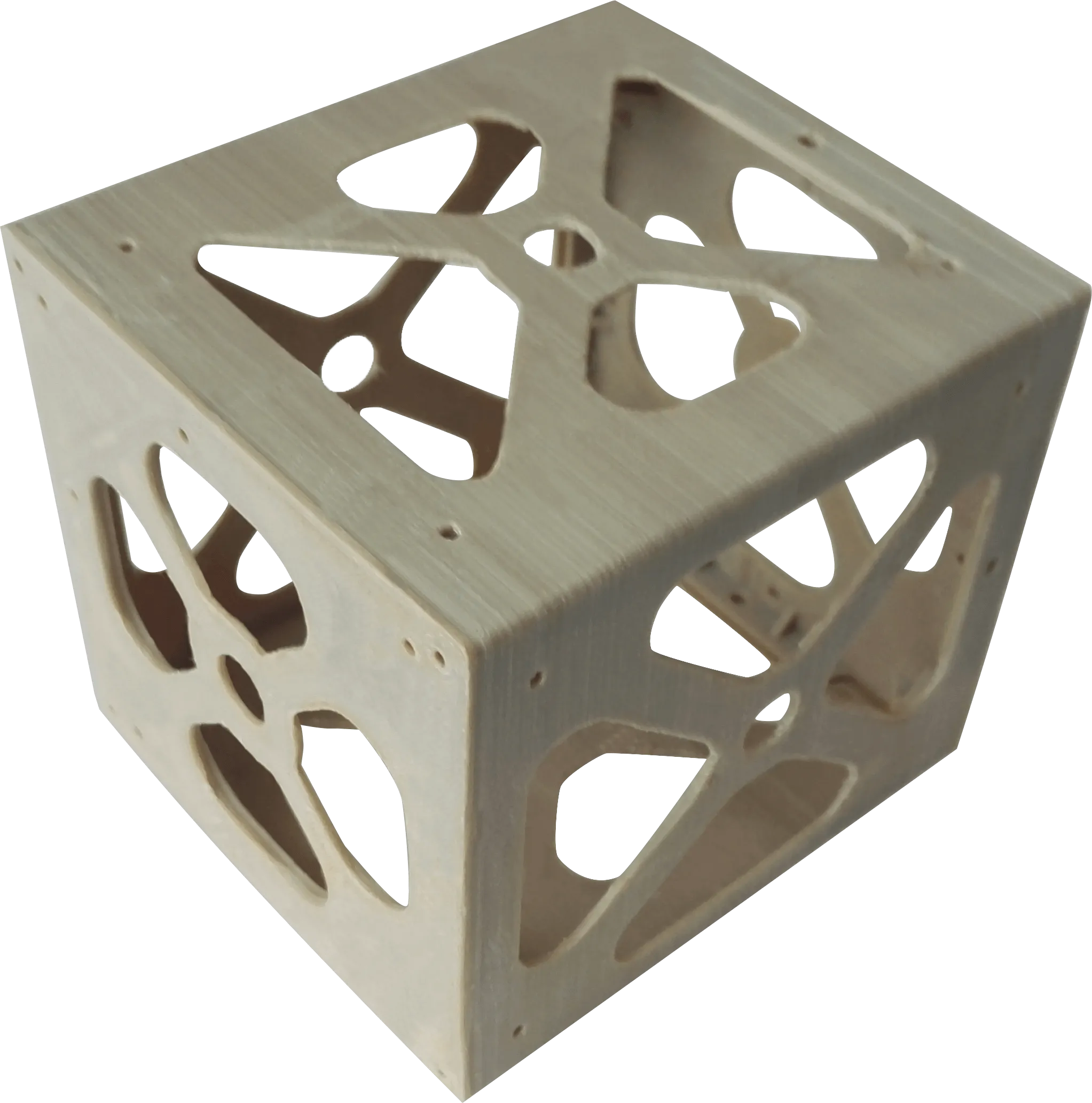

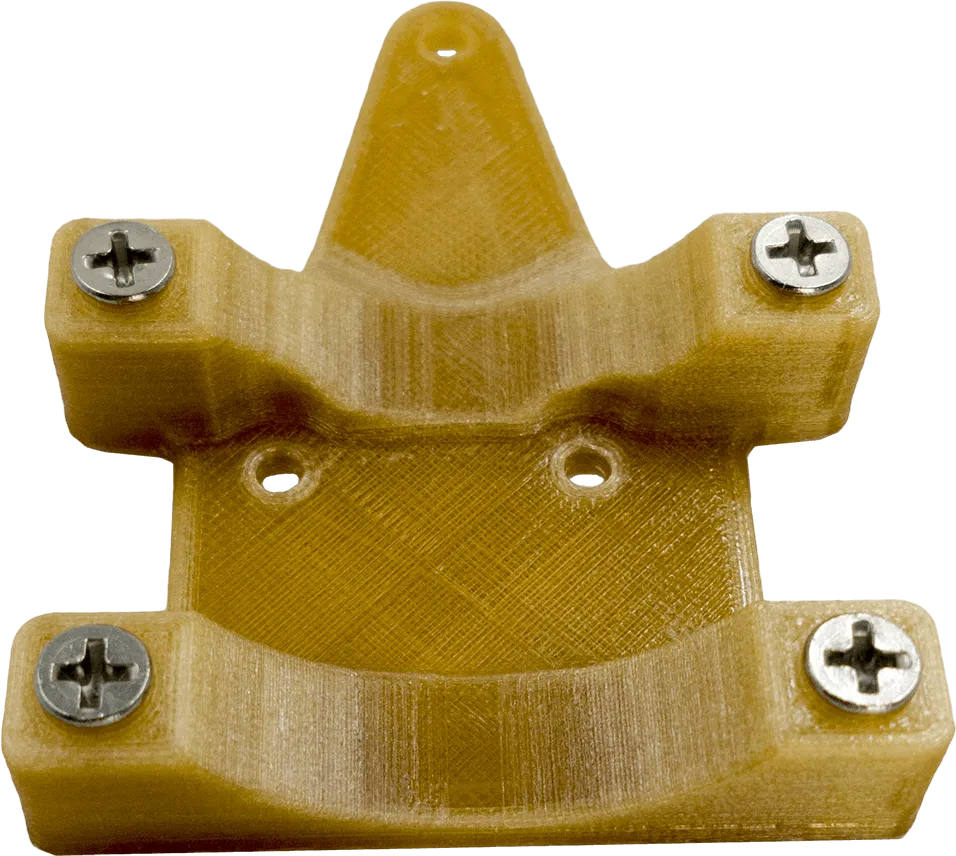

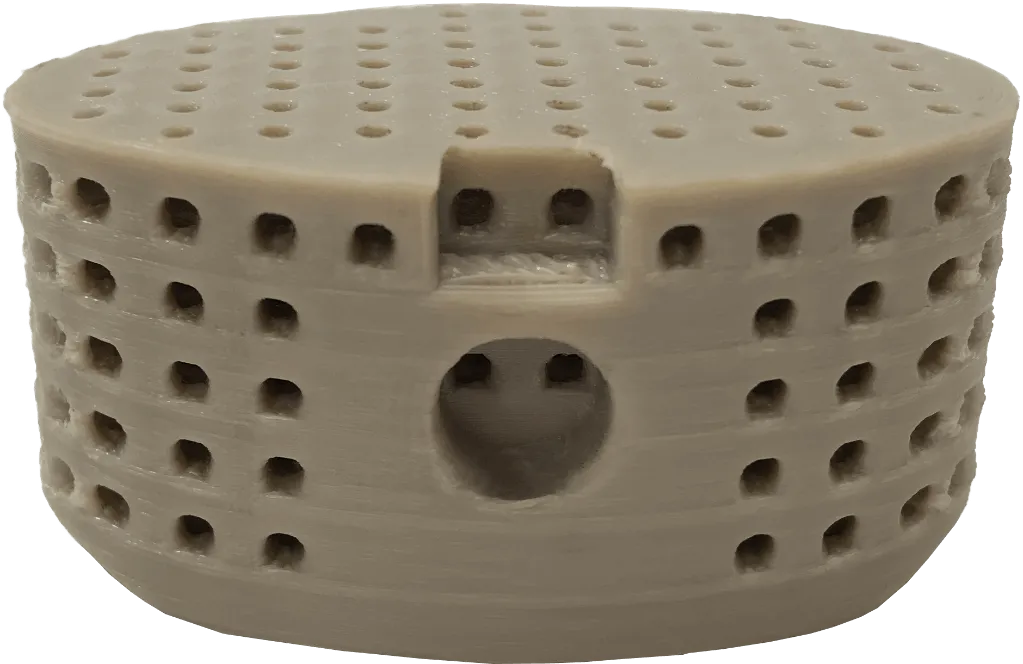

Designed to print PEEK, PC, PEI & PEI Blends and many other high-strength composites, comparable to metals

Vision Miner Service & Support

[tabs] [tab title="Features"]

Dual Extrusion is Finally Here

Filament Absent/Jam Warnings
When filament is getting low, or not extruding, a sensor pauses the print and allows you to fix the error
Battery Back-up
Power surges and failures? Each Funmat has it's own battery backup to pause prints, and resume when the power returns.
Built-in Wifi
Monitor your prints remotely with through a mobile app
Accurate to 16 microns
Cutting-edge components enable extremely high precision, resulting in incredible print quality down to 16 microns
Print Immediately
Use your favorite slicer - Simplify3D, Cura, Slic3r, and more.

[/tab]

[tab title="Technical Details"]

Technical Details

Printing Technology	Fused Filament Fabrication (FFF, FDM)
Build Volume	305 x 305 x 406 mm (12 x 12 x 16 in)
Bed Leveling	Automatic Leveing

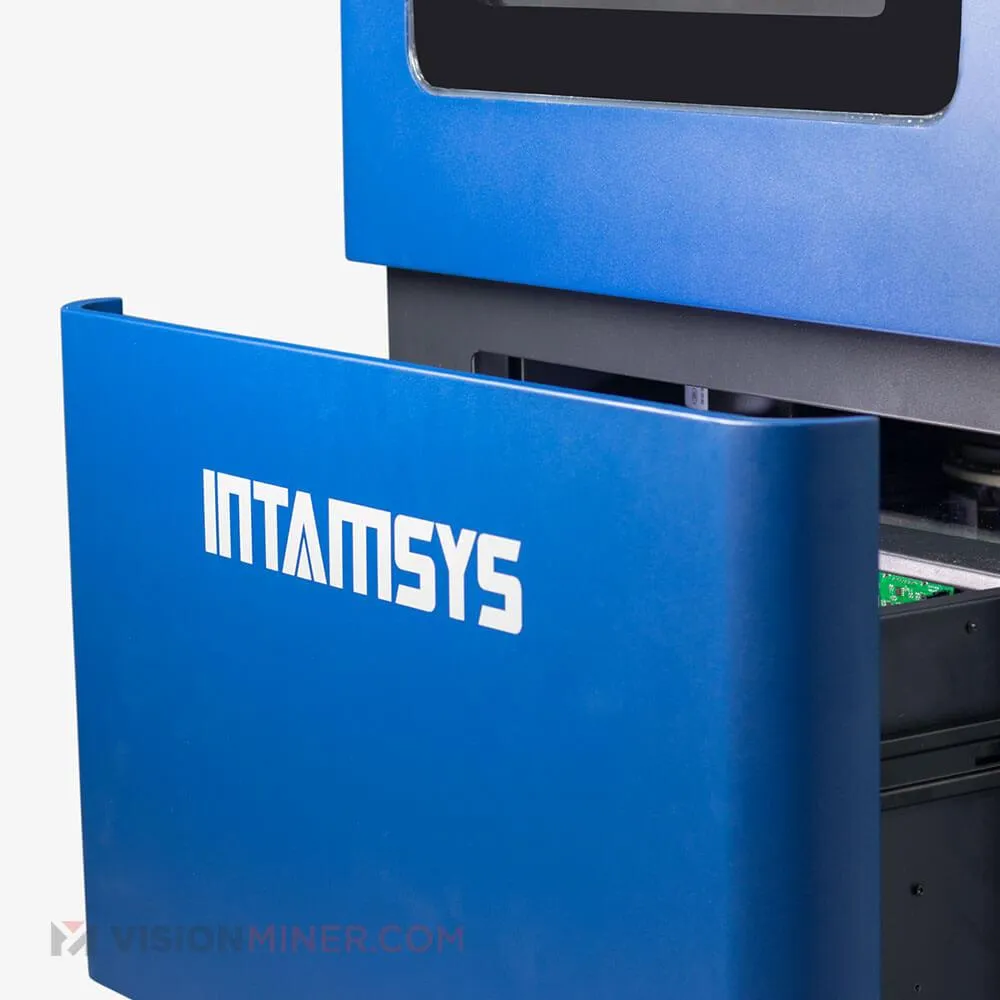

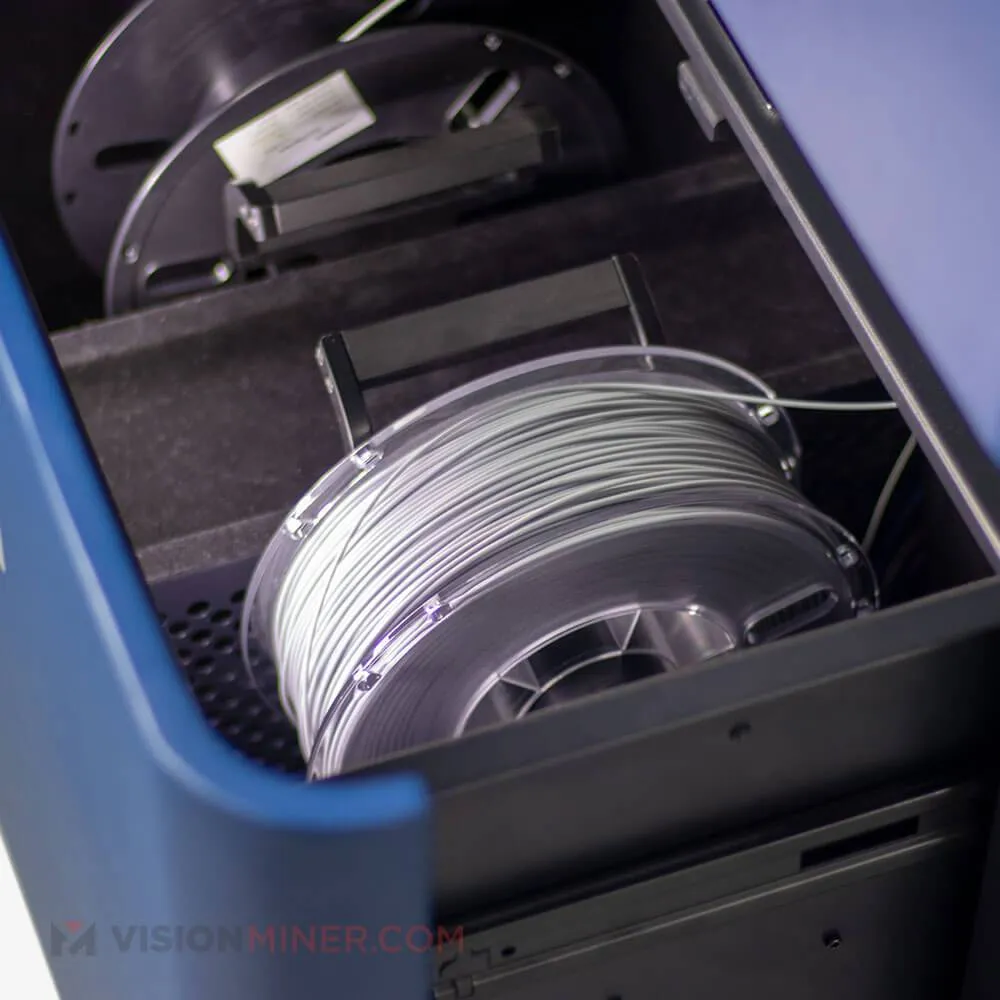

Filament Chamber	Heated Dry Box
Camera	Built-In Camera
Nozzle Cleaning	Automatic
Build Platform	Ceramic Glass
Layer Resolution	50 micron (0.05mm )
Print Speed	5-300mm/s (print speed will vary depending on material)
Extruder Temperature	500°C (932°F)
Platform Temperature	160°C (320°F)
Chamber Temperature	90°C (320°F)
Input File Type	STL, OBJ, GCode (easily converted from .sldprt, .step, or other CAD type drawings)

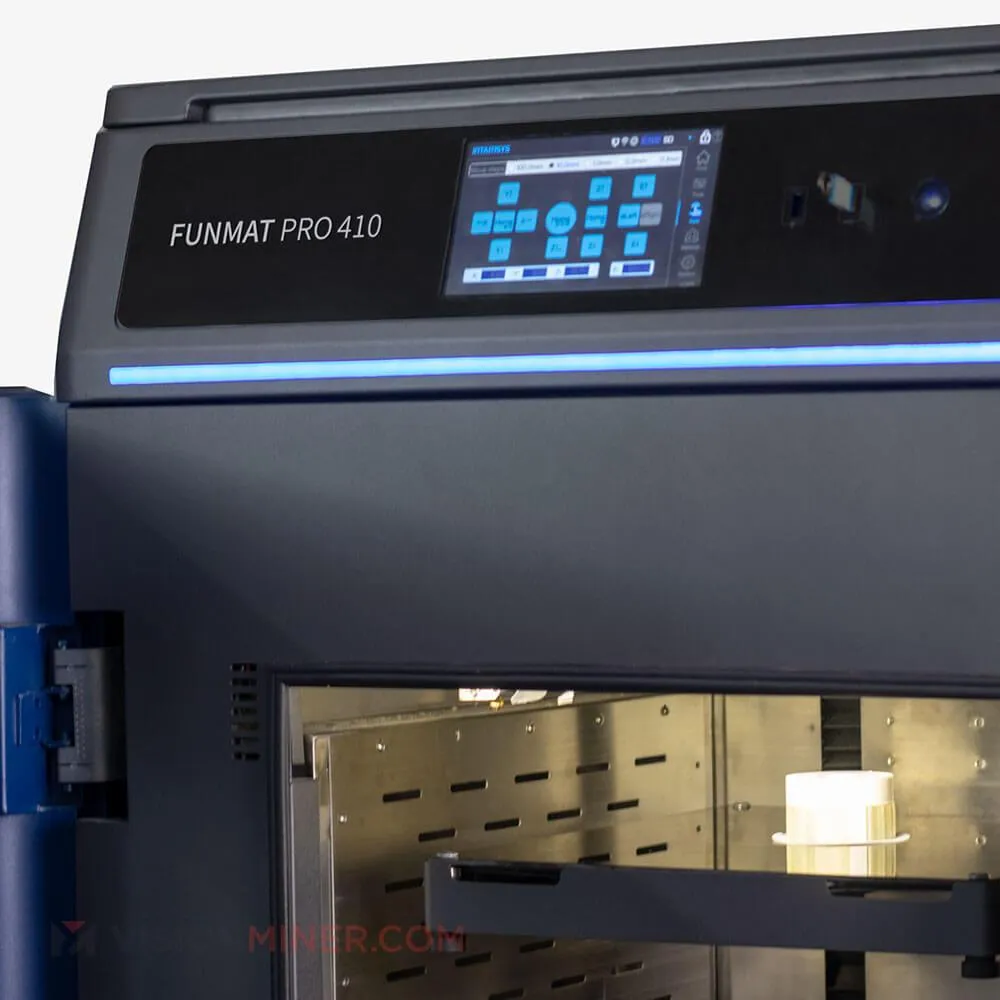

Interface	7-inch Touchscreen Display
Safety Certification	EN60950, CE Regulatory Compliance
Connectivity	Wifi, Ethernet, USB
Materials	PEEK, PEI & PEI Blends, PPSU, PA/CF, PC, PC Alloys, PA, ABS, Carbon Fiber-Filled, Metal-Filled, Fiberglass-Filled, Nylon, ASA, PETG, ESD-Safe, HIPS, TPU, PLA, PVA, ETC.
Filament Diameter	1.75mm
Nozzle Diameter	0.25mm .3mm .4mm .5mm .8mm (E3D v6 style nozzles)
Position Accuracy	XY axis: 16μm (0.016mm) Z axis: 1.6μm (0.0016mm)
Electrical Requirements	220v, 9A
Power Consumption	2500W
Printer Dimensions	720 x 670 x 1460 mm (28 x 26 x 57 inches)
Printer Weight	200kg (440lbs)

[/tab] [/tabs]

PLEASE NOTE: These machines are built-to-order in Shanghai, China. Buyer is responsible for all Shipping, Import Taxes, Duties, fees and Tariffs. Machine is delivered in a large, industrial crate, using a forklift is recommended.
