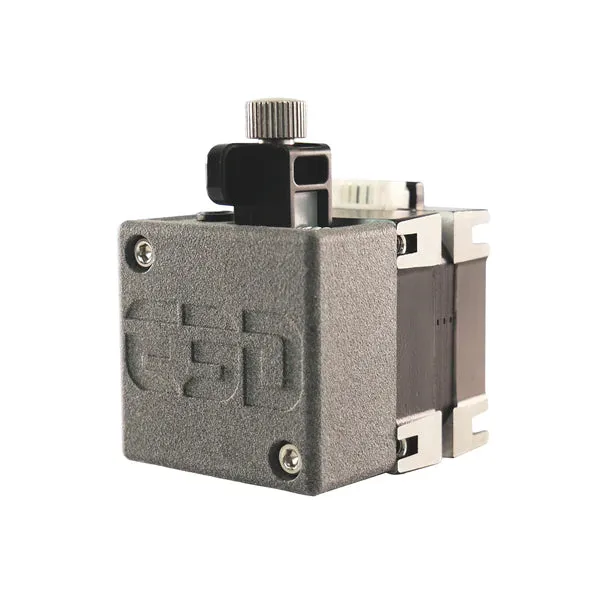

Shorter and lighter. Hemera XS Bowden V2 is 46g lighter and almost 6mm shorter than its predecessor, thanks to replacing the old heatsink with a 3D-printed, lightweight cover.
Capable of a wide range of 3D printing filaments. Enjoy excellent performance with all 3D printing materials, particularly challenging materials like abrasives thanks to hardened steel hobbs.
All the force you need. Hemera XS Bowden has all the extrusion force you need to drive the entire E3D ecosystem, including and .
Less likely to strip filament. In the event of a jam, the filament drive train for Hemera XS will stall instead of stripping the filament, making it easier to recover and start 3D printing again.
T-slot flat mounting. Our custom mounting system means a range of accessories can be mounted on this extrusion system, such as bed levelling probes, expansion boards, and more!
Please note:
This kit includes only 100mm of PTFE tube.
- Filament diameter: 1.75mm
- Works with Revo HotEnds, and V6 ecosystem HotEnds
this also works universally with most bowden 3d printers and their stock and modded hotends. - T-slot flat mounting system
- Dimensions: 85.5 x 44 x 65.25mm (HxWxD)
- Recommended Current: 1.40A Peak (~0.99A RMS)
- Nominal steps per mm (x16): 397
- Stemp angle: 1.8°
Adustment of the printer Esteps is required for this extruder.

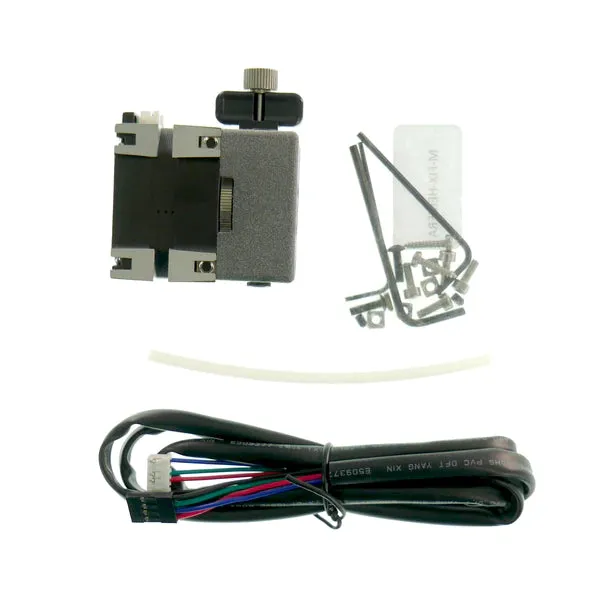

Whats in the box
- 1 x Hemera XS assembly
- 1 x 1.75mm Collet
- 1 x 1.75mm Collet clip
- 1 x Hemera fixings kit
- 1 x 1.75mm 100mm PTFE tube
