Product Details
＋

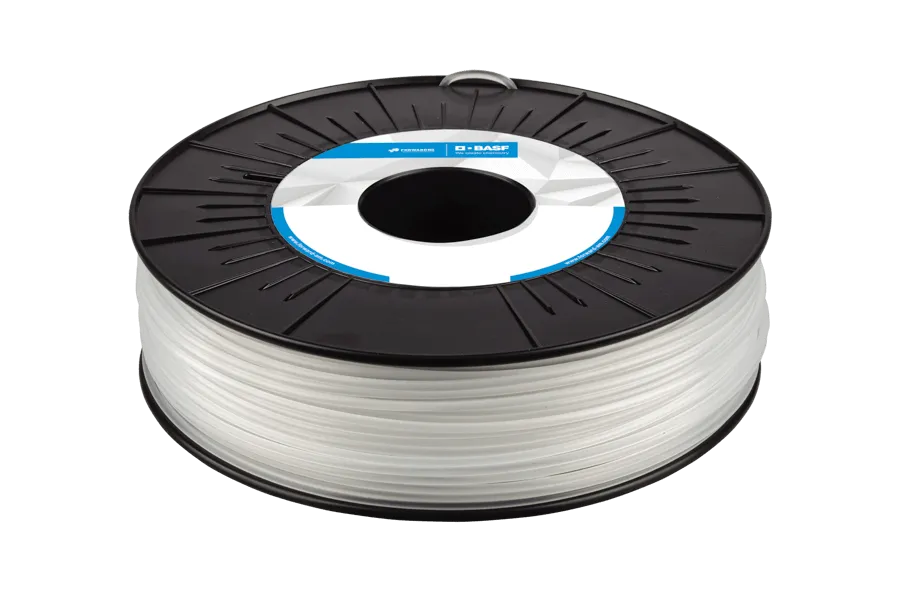

Ultrafuse® PP
Ultrafuse PP is high-performance thermoplastic with low density, high elasticity and high resistance to fatigue.
The mechanical properties make it an ideal material for 3D-printing applications which have to endure high stress or strain. The filament has high chemical resistance and a high isolation value. PP is one of the most used materials in the world, due to its versatility and ability to engineer lightweight tough parts.
Benefits at a Glance
- Tough and strong
- Fatigue resistant
- Chemical resistant
- Light weight (low density)
- Biocompatible
Example Applications
- Chemical contact
- Prototyping
Material Properties
- Tensile Strength (MPa): 9.0 (ZX), 15.5 (XY)
- Flexural Modulus (MPa): 380 (ZX), 494 (XZ), 575 (XY)
- Elongation at Break: 5.4 % (ZX), 118.6 % (XY)
- Impact Strength Izod notched (kJ/m2): 2.3 (ZX), 10.6 (XZ), 5.3 (XY)
- Impact Strength Izod unnotched (kJ/m2): 11.6 (ZX), 37.6 (XZ), 37.7 (XY)
- HDT @ 0.45 MPa: 54 °C
Printing Guidelines
- Nozzle Temperature: 220-240 °C
- Build Chamber Temperature: -
- Bed Temperature: 60 - 80 °C
- Bed Material: PP tape or PP adhesive
- Nozzle Diameter: ≥ 0.4 mm
- Print Speed: 20-50 mm / s
